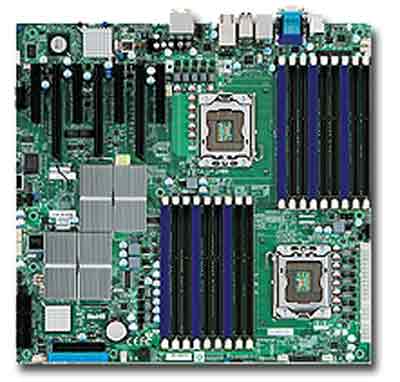

Supermicro X8DAH+ Motherboard

• Storage:

  • Intel ICH10R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows)
  • RAID 0, 1, 10 support (Linux)
  • IDE: Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
  • Supports UDMA Mode 5, PIO Mode 4, and ATA/100

• Rear Panel I/O Ports:
  • Super I/O: Winbond 83827HF chip
  • Six Serial ATA ports
  • Six SATA hard drives supported
  • 1 Floppy controller; 1.44 MB
  • 2x RJ45 LAN ports
  • 6x USB rear ports
  • 1x USB on-board
  • 2x USB internal headers (3 ports)
  • Total 10 USB 2.0 Compliant
  • Realtek ALC888 7.1 HD audio
  • PS/2 keyboard and mouse ports
  • Serial Port/Header: 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header (Option)
  • 2x IEEE 1394a ports (1x header)

• Hardware Monitoring:

  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator
  • FAN: Total of eight fan headers supporting up to 8 fans
  • Eight 4-pin fan headers
  • 8x fans with tachometer status monitoring
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control (4-pin fan only)
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
  • PECI
  • Chassis intrusion detection
  • Chassis intrusion header
  • Environmental Specs.: Operating Temperature: 10 ° to 35 ° C (50 ° to 95 °F)
  • Non-operating Temperature: -40 ° to 70 ° C (-40 ° to 158 ° F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)

Motherboard Specifications

• Model:
  • Supermicro X8DAH+ Motherboard


• Processor Support:

  • Dual 1366-pin LGA Sockets
  • Supports up to two  Intel ® 64-bit Xeon ®processor(s) of the same type below:
  • Intel ® Xeon ®Processor 5600 Series (Westmere)
  • Intel ® Xeon ®Processor 5500 Series (Nehalem-EP)
  • QPI: up to 6.4 GT/s

• Chipset:

  • Intel ® 5520 (Tylersburg) chipset
  • ICH10R +2x IOH-36D

• Memory:

  • 18x 240-pin DIMM sockets
  • Supports up to 288GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
  • Memory Type: 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 1GB, 2GB, 4GB , 8GB , 16GB
  • 1.5 V / 1.35V
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel ® x4 and x8 Single Device Data Correction (SDDC)

• Expansion Slots:

  • 2 (x16) PCI-E 2.0 slots
  • 4 (x8) PCI-E 2.0 slots (1 in x16 slot)
  • 1 (x4) PCI-E 2.0 slot

• On-Board Audio:
  • Realtek ALC888 7.1 HD audio

• On-Board LAN:

  • Intel ® 82576 Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel ® I/OAT 3  support for fast, scaleable, and reliable networking
  • VMDq  support for better performance of virtualization

• Form Factor/Dimensions:
  • Enhanced Extended ATX
  • 13.68" x 13" (34.7cm x 33cm)
• Manageability:
  • SuperDoctor ® III
  • Power Configuration: ACPI / ACPM Power Management
• BIOS:
  • 32Mb SPI Flash EEPROM with AMI ® BIOS
  • Features: Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support

• Special Features:
  • Important Chassis Notes: To support the new generation Intel ® Xeon ® processor-based motherboards, a Revision K  chassis is recommended for most models. Please talk to your sales representative or follow the link for details.
