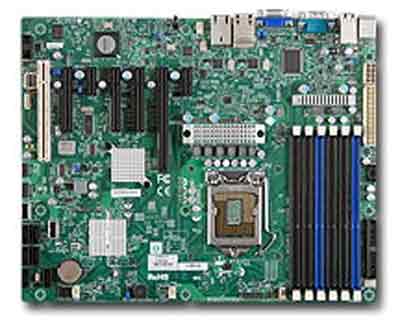

Supermicro X8SIA-F Motherboard

• Storage:

  • 6x SATA (3 Gbps)
  • RAID 0, 1, 5, 10 support (Windows)
  • RAID 0, 1, 10 support (Linux)
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC

• Rear Panel I/O Ports:
  • Super I/O: Nuvoton W83627DHG UBE
  • Clock Generator: CK505
  • 6 SATA ports
  • 6 SATA hard drives supported
  • 2x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
  • 4x USB rear ports
  • 2x USB on-board
  • 2x USB internal header (4 ports)
  • Total 10 USB 2.0 Compliant
  • 1x VGA port
  • PS/2 keyboard and mouse ports
  • 1x Fast UART 16550 serial port
  • 1x internal header

• Hardware Monitoring:

  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
  • FAN: Total of 5 fan headers supporting up to 5 fans
  • Five 4-pin fan headers
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
  • CPU / System Overheat LED
  • +5V Standby alert LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • RoHS
  • Environmental Spec.: Operating Temperature: 10 °to 35 °C (50 °to 95 °F)
  • Non-operating Temperature: -40 °to 70 °C (-40 °to 158 °F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)


Motherboard Specifications

• Model:
  • Supermicro X8SIA-F Motherboard


• Processor Support:
  • LGA 1156 Socket
  • Intel ® Xeon ® X3400  series
  • Intel ® Xeon ® L3400  series
  • Intel ® Core i3
  • Intel ® Pentium ® G6950
  • Intel ® Celeron ® G1101

• Chipset:
  • Intel ® 3420 chipset

• Memory:

  • 6x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMM sockets
  • Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) in 4 DIMM sockets
  • 1333 / 1066 / 800 MHz
  • Dual Core processors of Ci3 and Pentium: support ECC UDIMM only
  • NOTE: All X3400 series and L3426 CPU support RDIMM and UDIMM
  • All i3 series, L3406, G6950, and G1101 CPU support UDIMM only
  • 1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 1GB, 2GB, 4GB, 8GB
  • 1.5 V
  • Error Detection: Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Expansion Slots:

  • 3 (x8) PCI-E 2.0 (1 in x16 slot)
  • 1 (x4) PCI-E 2.0 (using x8 slot)
  • 2 (x1) PCI-E slots
  • 1 32-bit PCI slot

• On-Board Video:
  • Matrox G200eW 16MB DDR2

• On-Board LAN:

  • Dual Intel ® 82574L Gigabit Ethernet Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6" (30.5cm x 24.4cm)
• Manageability:

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor ® III
• Watch Dog
• NMI
• Power Configurations: ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Wake-On-LAN (WOL) header
• Keyboard Wakeup from Soft-Off
• Power-on mode for AC power recovery
• Internal/External modem ring-on
• BIOS:
  • 32Mb SPI Flash EEPROM with AMI BIOS
  • Features: DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

• Special Features:
  • Important Chassis Notes: To support the new generation Intel ® Xeon ® processor-based motherboards, aRevision K  chassis is recommended for most models. Please talk to your sales representative or follow the link for details.
