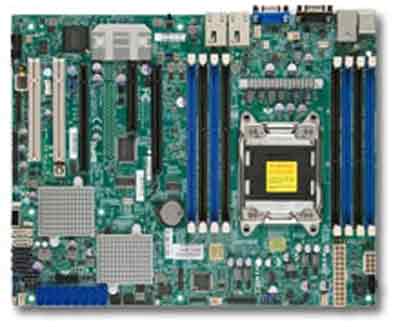

Supermicro X9SRH-7F Motherboard

• Storage:
  • SATA3 (6Gbps) and SATA2 (3Gbps)
  • RAID 0, 1, 5, 10
  • SAS2 (6Gbps) via LSI 2308
  • SW RAID 0, 1, 10 support
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450RA0BX
  • Intel Node Manager support

• Rear Panel I/O Ports:
  • Super I/O: Nuvoton NCT 6776F
  • 2x SATA 3.0 ports (6Gbps)
  • 4x SATA 2.0 ports (3Gbps)
  • 8x SAS2 ports (6Gbps)
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
  • 9x USB 2.0 ports total (2x rear + 6x via header + 1x Type A)
  • 1x VGA port
  • 2x PS/2 Keyboard/Mouse ports
  • 2x serial ports (1 rear, 1 header)
  • 1x DOM (Disk on Module) power connector
  • 1x TPM 1.2 20-pin Header


• Special Features:
  • Important Chassis Notes: To support the new generation Intel ® Xeon ® processor-based motherboards,Revision K  chassis is recommended for most models. Please talk to your sales representative for details.

• Hardware Monitoring:

  • Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • FAN: Five 4-pin fan headers supporting up to 5 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I²C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
  • Chassis intrusion detection
  • Chassis intrusion header
  • Chipkill support
  • RoHS, Halogen Free


Motherboard Specifications

• Model:
  • Supermicro X9SRH-7F Motherboard


• Processor Support:
  • Intel ® Xeon ® processor E5-2600/E5-1600 processors (up to 8 cores and up to 135W)
  • Single Socket R (LGA 2011)

• Chipset:
  • Intel C602J chipset (7 Years Long Life)

• Memory:

  • 8x 240-pin DDR3 DIMM sockets
  • Supports up to 256 GB DDR3 ECC Registered memory (RDIMM)
  • Supports up to 64 GB DDR3 ECC and non-ECC UDIMM
  • 1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
  • 1.5 V, 1.35 V
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Expansion Slots:

  • 1x PCI-E 3.0 x16 slot
  • 1x PCI-E 3.0 x8 (in x16) slot
  • 1x PCI-E 2.0 x8 slot
  • 3x PCI-32 slots

• On-Board Video:
  • Matrox G200eW 16MB DDR2 graphics

• On-Board LAN:

  • Intel ® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6", (30.5cm x 24.4cm)
• Manageability:

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor ® III
• Watch Dog
• NMI
• Power Configurations: ACPI / APM Power Management
• Keyboard Wakeup from Soft-Off
• CPU Fan auto-off in sleep mode
• Power-on mode for AC power recovery
• BIOS:
• 64Mb SPI Flash EEPROM with AMI BIOS
• Features: Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.7.1
• UEFI
• RTC (Real Time Clock) Wakeup
