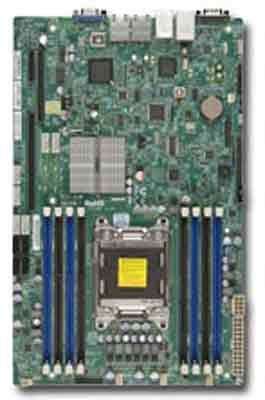

Supermicro X9SRW-F Motherboard

• Storage:

  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450RA0BX

• Rear Panel I/O Ports:

  • 2 SATA 3.0 ports (6Gbps)
  • 4 SATA 2.0 ports (3Gbps)
  • SCU: 4 SATA ports (3Gbps) via SCU
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
  • 8 USB 2.0 ports total (4 rear + 4 via header)
  • 1 VGA port
  • 1 serial port
  • 1 DOM (Disk on Module) power connector


• Special Features:
  • Important Chassis Notes: To support the new generation Intel ® Xeon ® processor-based motherboards,Revision K  chassis is recommended for most models. Please talk to your sales representative for details.

• Hardware Monitoring:
  • Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • FAN: Total of five 4-pin fan headers supporting up to 5 fans
  • 5 fans w/ tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I²C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
  • Chassis intrusion detection
  • Chassis intrusion header
  • Chipkill support
  • RoHS, Halogen Free


Motherboard Specifications

• Model:
  • Supermicro X9SRW-F Motherboard


• Processor Support:
  • Intel ® Xeon ® processor E5-2600/E5-1600 family (up to 8 cores and up to 130W)
  • Single Socket R (LGA 2011)

• Chipset:
  • Intel C602 chipset

• Memory:

  • 8x 240-pin DDR3 DIMM sockets
  • Supports up to 256 GB DDR3 ECC Registered memory (RDIMM)
  • Supports up to 64 GB DDR3 ECC and non-ECC UDIMM
  • 1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
  • 1.5 V, 1.35 V
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Expansion Slots:

  • 2 (x16) PCI-E 3.0 slots
  • 1 (x8) PCI-E 3.0 (in x16) slot

• On-Board Video:
  • Matrox G200eW 16MB DDR2 graphics controllers

• On-Board LAN:

  • Intel ® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

• Form Factor/Dimensions:
  • Proprietary
  • 8.15" x 13.05", (20.7cm x 33.1cm)
• Manageability:

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor ® III
• Watch Dog
• NMI
• Power Configurations: ACPI / APM Power Management
• Keyboard Wakeup from Soft-Off
• CPU Fan auto-off in sleep mode
• Power-on mode for AC power recovery
• BIOS:
• 64Mb SPI Flash EEPROM with AMI BIOS
• Features: Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.7.1
• UEFI
• RTC (Real Time Clock) Wakeup
