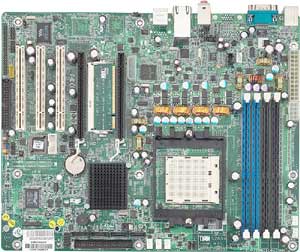

Tyan Tomcat K8E-SLI Motherboard
Socket 939 for AMD Athlon 64 and
Opteron, nVIDIA nForce, 4 DDR-DIMM, 2 PCI-Express 16x, 1 SO-DIMM, 3 PCI,
AUDIO, VIDEO, LAN, USB, FIREWIRE, SATA2, IDE Support. |
|
- Internal I/O Interface:
- Four USB v2.0 ports (via cable)
- One COM port (via cable)
- Tyan 2 x 9 front-panel pin header
- 2 x 25 pin SMDC pin header
- VIA VT6307 PCI FireWire (1394a) controller
- Two 1394a ports (via cable)
-
On-Board Audio:
- Realtek ALC655 audio CODEC
- AC'97 Rev.2.3 supported
- CD-in connector
- Storage/RAID:
- Serial ATA-II Host controllers embedded
- Supports four Serial ports running at 3Gb/s
- NV RAID RAID 0, 1, 0+1 and JBOD support
- SATA activity LED connector
- Single ch. master mode supports two IDE devices
- Support for ATA-133/100/66/33 IDE drives and ATAPI compliant devices
- Rear Panel I/O Ports:
- Stacked PS/2 mouse and keyboard ports
- COM1 connector; one 15-pin VGA port
- Three audio jacks (S2866A2NRF)
- Stacked two RJ45 ports for nVIDIA and BCM5705 Gigabit LAN with link/activity LED
- Stacked two USB v2.0 ports & one RJ45 port for Intel 82551 10/100 LAN w/ link/activity LED
- On-Board Video:
- XGI Volari Z7 PCI graphics controller
- 16MB Frame Buffer of video memory
|
Motherboard Specifications
- Model:
- Tyan Tomcat K8E-SLI (S2866) Motherboard
- Processor Support:
- PGA
939-pin socket; supports AMD Athlon 64 4000+, Athlon 64 FX, X2, and
Socket 939 Opteron 100 series processors
- Up to 1 GHz Hyper-Transport link support
- Single and Dual Core support
- Chipset:
- nVIDIA
nForce pro2200 (S2866A2NRF), w/ SLI technology support
- nVIDIA nForce4 Ultra (S2866G3NR), w/o SLI technology support
- SMSC DME1737
- Memory:
- Dual memory channels
- Supports up to four DDR-400/333 DIMMs
- Up to 4GB of unbuffered, ECC/Non-ECC memory
- Expansion Slots:
- One x16
PCI Express connector (#6)
- One x16 PCI Express connector (#4) support SLI technology for x8 PCI Express
signal
- One SODIMM socket for SLI card (#5)
- Three 32-bit, 33MHz PCI v2.2 slots
- On-Board LAN:
- One
Broadcom BCM5705 GbE controller
- Operates at PCI v2.2 interface
- Pin headers for front panel LAN LED
- One
Intel 82551 10/100 LAN controller (G3NR)
- Operates at PCI v2.2 interface WOL/PXE support
- Pin headers for front panel LAN LED
- One
integrated nVIDIA MAC with Marvell
88E1111-CAA GbE PHY
- 32bit PCI v2.3 interface
- WOL/PXE support
- Pin header for front panel LAN LED
- BIOS:
- Award BIOS 8Mbit Flash
- Supports APM 1.2 & ACPI 1.0
- PnP, DMI2.0, WfM2.0 Power Management
- Form Factor:
- ATX footprint (12" x 9.6"; 305mm x 244mm)
- Manageability:
- SMSC
DME1737 with hardware monitoring
- Total of
six 4-pin FAN connectors: FAN1, 2, 3, and CPU FAN all have tachometer
and auto FAN control, FAN4 has only auto FAN control with FAN3 and FAN 4
always run
- Temperature
and voltage monitoring
- Watchdog
timer
- Tyan Server
Management Daughter card M3291(optional) supports features listed below
FAN1, 2, 3, and CPU FAN all have tachometer
|
