Tyan  S2865AG2NRF-RS

Tyan S2865AG2NRF-RS

Part # 108397

Condition : New- Retail Box

| Warranty: 365 days

Brand : Tyan

Rate this product:


Loading...

Click "Notify" to get an alert when it's available

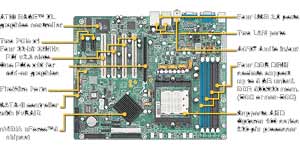

Tyan Tomcat K8E (S2865ANRF) Motherboard

Tyan Tomcat K8E (S2865AG2NRF-RS) Motherboard

Socket 939 for AMD Opteron, nVIDIA nForce4, 4 DDR-DIMM, 1 PCI Express 16x, 2 PCI Express 1x, 4 PCI, AUDIO, VIDEO, Dual LAN, USB, FIREWIRE, IDE, SATA, RAID Support.

Tyan Tomcat K8E (S2865AG2NRF-RS), Socket 939 for AMD Opteron Motherboard, nVIDIA nForce4, 4 DDR-DIMM, 1 PCI Express 16x, 2 PCI Express 1x, 4 PCI, AUDIO, VIDEO, LAN, USB, FIREWIRE, IDE, SATA, RAID Support.

  • Internal I/O Interface:
    • One floppy connector
    • Four USB v2.0 ports (via cable)
    • One COM port (via cable)
    • Tyan 2 x 9 front-panel pin header
    • 2 x 25 pin SMDC pin header
    • One Parallel pin header
    • VIA VT6307 PCI FireWire (1394a) controller
    • Two 1394a ports (via cable)

  • On-Board Audio
    • Realtek ALC655 5.1 channel audio CODEC
    • AC'97 Rev.2.3 supported; CD-in connector
    • 2 x 5 pin header for front panel audio connector

  • Storage/RAID:
    • Dual-ch. master mode supports four IDE devices
    • Supports for ATA-133/100/66/33 IDE drives and ATAPI compliant devices
    • SATA-II Host controllers embedded
    • Supports four Serial ports running at 3.0Gb/s
    • RAID 0, 1, 0+1 and JBOD support
    • SATA activity LED connector
  • On-Board Video:
    • ATI ® RAGE XL PCI graphics controller
    • 8MB Frame Buffer of video memory

  • Manageability:
    • SMSC DME1737 w/ hardware monitoring
    • One 4-pin CPU fan with auto fan control
    • Four 4-pin system fan headers (three with tachometer input and four with auto fan control)
    • One 3-pin chassis fan connecrtor.
    • Temperature and voltage monitoring
    • Watchdog timer

  • Integrated PCI 1394a (FireWire):
    • VIA VT6307 PCI FireWire (1394a) controller
    • Two 1394a ports (via cable)

  • Power:
    • ATX12V support, on board 4-phase VRM
    • Universal 24-pin + 8-pin power connectors
    • 4-pin auxiliary power connector

Tomcat K8E Specifications

  • Model:
    • Tyan Tomcat K8E (S2865AG2NRF-RS ) Motherboard
  • Processor Support:
    • µPGA 939-pin socket; supports AMD Athlon, X2, FX processors
    • Up to 1 GHz Hyper-Transport link support
  • Chipset:
    • nVIDIA nForce4 core-logic; SMSC DME1737

  • FSB:
    • 1GHz FSB

  • Memory:
    • Dual memory channels
    • Supports up to four DDR-400/333 DIMMs
    • Up to 4GB of unbuffered, ECC/Non-ECC memory

  • Expansion Slots:
    • One x16 PCI Express connector for graphics
    • Four 32-bit 33MHz PCI v2.3 slots
    • Two x1 PCI Express interface
    • Total of seven usable expansion slots
  • On-Board LAN:
    • One Broadcom BCM5721 GbE controller
      - Operating at x1 PCI-E interface; ASF 2.0 support
      - Pin headers for front panel LAN LED
    • One CK8-04 integrated MAC with Marvell
      88E1111-CAA GbE PHY
      - 32bit PCI v2.3 interface
      - IEEE802.3 compliant, WOL/PXE support
      - Pin header for front panel LAN LED

  • Rear Panel I/O Ports:
    • Stacked PS/2 mouse and keyboard ports
    • COM1 connector
    • One 15-pin VGA port
    • One 25-pin SPP/ECP/EPP parallel port
    • Four audio jacks
    • Stacked two USB v2.0 ports and one RJ45 (Marvell 88E1111-CAA PHY + nVIDIA MAC) 10/100/1000 Base-T port w/ link/activity LED
    • Stacked two USB v2.0 ports and one RJ45 (BCM5721) 10/100/1000 Base-T port with link/activity LED

  • Regulatory:
    • FCC Class B (Declaration of Conformity)
    • CE (Declaration of Conformity)
  • BIOS:
    • Award BIOS 8Mbit Flash
    • Supports APM 1.2 & ACPI 1.0
    • PnP, DMI2.0, WfM2.0 Power Management

  • Form Factor:
    • ATX footprint (12" x 9.6"; 305mm x 244mm)
