Tyan S5102G3NR

Tyan S5102G3NR

Part # 109741

Condition : Refurbished

| Warranty: 30 days

Brand : Tyan
| Log in to add review

Rate this product:


Loading...

Click "Notify" to get an alert when it's available

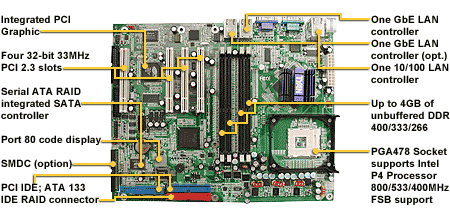

Tyan Tomcat i875P S5102G3NR Motherboard for sale

Tyan Tomcat i875P (S5102G3NR) Motherboard

Socket 478 for Intel Pentium 4, Intel 875P chipset, 4 PCI, 4x DDR DIMM, Video, Triple LAN, USB, IDE and SATA RAID

Tyan Tomcat i875P motherboard, Tyan S5102G3NR, Tyan S5102, triple LAN, IDE, SATA, RAID,

  • Internal I/O Interface:
    • Eight USB 2.0 ports
      (2 rear connectors and 3 headers)
    • Two 9-pin serial ports
      (one rear connector and one header)
    • One IRDA connector (via optional cable)
    • Power/IDE LED connectors
    • Headers for CPU/Power Supply/Chassis Fans
    • One 25-pin ECP/EPP/SPP parallel port header
  • Storage/RAID:
    • Dual-channel master mode supports up to four IDE devices
    • Supports for ATA-100/66/33 IDE drives and ATAPI compliant devices
    • Two SATA Host controllers embedded in ICH5
    • Supports two Serial ports running at 1.5Gb/sec.
    • Promise PDC20378 SATA RAID controller
    • Two SATA and one ATA/133 channels
    • Support up to two SATA and two ATA-133/100 IDE drives; supports IDE RAID 0, 1, 0+1
  • Rear Panel I/O Ports:
    • Serial and VGA connectors
    • Three RJ45 1000/100/10 ports
    • Stacked two USB 2.0 ports
    • Stacked PS/2 keyboard and mouse ports
  • BIOS:
    • Award BIOS on 8Mbit Flash ROM
    • Supports APM 1.2 & ACPI 1.0
    • PnP, DMI2.0, WfM2.0 Power Management

  • Manageability:
    • Winbond W83627HF w/ hardware monitoring
    • Three 3-pin fan headers
      (three fan headers with tachometer monitoring)
    • Temperature and voltage monitoring
    • Watchdog timer
    • Port 80 code display LED
  • Form Factor:
    • ATX form factor (12" W x 9.6 D")

Tyan Tomcat i875P Specifications

  • Model:
    • Tyan Tomcat i875P S5102G3NR Motherboard
  • Processor Support:
    • Single PGA478 ZIF socket
    • Supports Intel ® P4 "Northwood" and "Prescott" processor up to 3.40GHz+
    • Hyper-Threading Technology supported
    • Onboard VRM (VRM 9.1 spec)
    • Front-Side Bus support for 800/533/400 MHz
  • Chipset:
  • FSB:
    • FSB 800/533/400MHz

  • Memory:
    • Supports up to four DDR DIMM sockets (Dual Channel Configuration)
    • Up to 4GB of unbuffered DDR400/333/266 mem.
    • Registered memory is NOT supported
    • Supports ECC/non-ECC type memory modules

  • Expansion Slots:
    • Four 32-bit (5-volt) 33MHz PCI 2.3 slots
  • On-Board LAN:
    • Two Gigabit LAN controllers
      - Intel ® 82547GI GbE LAN controller
      (operating at 266MB/s CSA interface)
      - Intel ® 82541GI GbE LAN controller (option)
    • One 10/100 Mbps LAN controller
      - Intel ® 82562EM 10/100 Mbps LAN controller

  • On-Board Video:
    • ATI ® RAGE XL PCI controller
    • 8MB frame buffer
  • Tyan Tomcat i875P motherboard, Tyan S5102G3NR, Tyan S5102, triple LAN, IDE, SATA, RAID,
