Tyan S5151G3NR

Tyan S5151G3NR

Part # 108347

Condition : New- Retail Box

| Warranty: 365 days

Brand : Tyan
| Log in to add review

Rate this product:


Loading...

Click "Notify" to get an alert when it's available

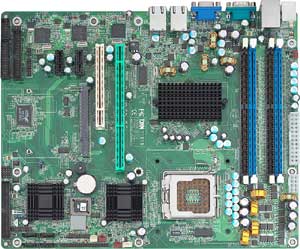

Tyan S5151G3NR Tomcat i7221A Socket 775 Motherboard

Tyan Tomcat S5151G3NR

Socket 775 Motherboard with Integrated Video, LAN, USB, 2 PCI Express x1, 1 PCI-X 64bit, One PCI slot, Intel E7221, DDR 333/400, IDE, 4 SATA, RAID Support.

S5151G3NR Tyan Tomcat i7221A Socket 775 Motherboard with Integrated Video, LAN, USB, 2 PCI Express x1, 1 PCI-X 64bit, One PCI slot, Intel E7221, DDR 333/400, IDE, 4 SATA, RAID Support.

  • Internal I/O Interface:
    • One floppy connector
    • Four USB 2.0 ports (via cable)
    • One COM2 port (via cable)
    • One LPT port (via cable)
    • Power/IDE/SATA LED connectors
    • Two 2+2-pin headers for front panel LAN LED
    • Tyan 2 x 9 front-panel pin headers

  • Storage/RAID:
    • Single channel master mode supports two IDE devices
    • Support for ATA-100/66/33 IDE drives and ATAPI-compliant devices
    • Four Serial ATA Host controllers embedded
    • Two supports four Serial ports running at 1.5Gb/s
    • RAID 0, 1 support
      - Two Firmware options (Intel and Adaptec) for
      SATA RAID support
      - 1x RAID 0, 1 array for Windows and Linux
      (Adaptec) or ...
      - 2x RAID 0, 1 arrays for Windows (Intel),
      maximum 2 HDD/array
  • Rear Panel I/O Ports:
    • 4 USB 2.0
    • One COM2
    • One LPT (parallel) port
    • One VGA port
    • 1 10/100 Ethernet port
    • 2 10/100/1000 Ethernet port

  • BIOS:
    • Award BIOS 8Mbit flash ROM
    • Supports APM 1.2 & ACPI 1.0
    • PnP, DMI2.0, WfM2.0 Power Management

Tomcat i7221A Specifications

  • Model:
    • Tyan Tomcat S5151G3NR Motherboard
  • Processor Support:
    • Single Socket-T (LGA775 Socket)
    • Supports Intel ® P4 processors with EM64T
    • 800/533MHz FSB support
  • Chipset:
    • Intel ® E7221 MCH
    • Intel ® ICH6R South Bridge
    • Intel ® PXH-V I/O bridge
    • SMSC DME1737 Super I/O

  • FSB:
    • 800/533MHz FSB support

  • Memory:
    • Dual channel memory bus
    • Supports up to four DDR-333/400 DIMM
    • Up to 4GB of unbuffered, ECC/non-ECC memory

  • Expansion Slots:
    • One PCI-X 64bit slot
    • One proprietary 200-pin SO-DIMM connector
    • Two (x1) PCI-Express connectors
    • One 32-bit 33MHz PCI 2.3 slot
    • Total of five usable expansion slots
  • On-Board LAN:
    • One 10/100 Ethernet LAN controller
      - Intel ® 82551
    • Two GbE LAN controllers
      - Two Broadcom ® BCM5721 PCI Express GbE
      LAN controllers
      - Operating at x1 PCIe interface
      - ASF 2.0 support

  • On-Board Video:
    • 8-bit VGA DAC embedded in the MCH to support an analog display

  • Manageability:
    • SMSC DME1737 with hardware monitoring
    • One 3+1 pin CPU Fan header w/ tachometer
    • input and temperature-sensing auto fan control
    • Five 3-pin system fan headers (3 w/ tachometer input, 4 w/ temperature-sensing, auto fan control)
    • Temperature and voltage monitoring
    • Watchdog timer; port 80 code display LED
  • Form Factor:
    • ATX footprint (12" x 9.6", 304.8x243.8mm)
    • Onboard 4-phase VRM
    • Universal 24-pin + 8-pin power connectors
    • 4-pin auxillary power connector
