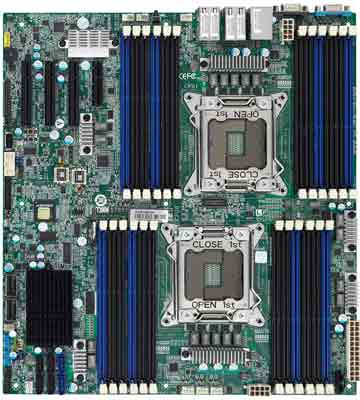

TYAN S7052 (S7052GM3NR) Motherboard

• Storage:
  • (10) SATA; (2) 6G + (8) 3G
  • Intel C602
  • (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color) + (4) 3.0 Gb/s (mini-SAS connector)
  • RAID 0/1/10/5 (Intel RST)

• Rear Panel I/O Ports:
  • (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A onboard)
  • (1) COM port (rear)
  • (1) D-Sub 15-pin VGA port
  • RJ-45: (3) GbE ports

• Internal I/O Interface:
  • SSI 24-pin + 8-pin + 8-pin power connectors / SSI EEB spec. 2008
  • (1) 2x12-pin SSI front panel header(4) SATA-II , (2) SATA-III connectors, and (1) Mini-SAS (4-in-1) connector

• BIOS:
  • 8MB / AMI
  • Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types

• Hardware Monitoring:
  • Nuvoton 83773G
  • Monitors voltage for CPU, memory, chipset & power supply
  • FAN: Total (7) 4-pin headers
  • Monitors temperature for CPU & system environment

Motherboard Specifications

• Model:
  • TYAN S7052 (S7052GM3NR) Motherboard


• Processor Support:
  • Intel Xeon Processor E5-2600 Series
  • Socket Type/Qty.: (2) LGA2011
  • Thermal Design Power (TDP) wattage: Max up to 135W

• Chipset:
  • Intel C602

• FSB:
  • Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath Interconnect (QPI) support

• Memory:
  • (12)+(12) DIMM slots
  • DDR3/DDR3L 800 / 1066 / 1333 / 1600 RDIMM, 1066 / 1333 UDIMM / LRDIMM / Support DDR3 Unbuffered and Register ECC
  • up to 512GB RDIMM / 128GB UDIMM / 768GB LRDIMM
  • Memory Channel/Voltage: 4 Channels per CPU / Support 3 R/LR-DIMMs or 2 UDIMMs per channel/1.5V or 1.35V

• Expansion Slots:
  • (1) PCI-E Gen3 x4 slots (slot #4) / (3) PCI-E Gen3 x8 slots (slot #3, #2, #1)

• On-Board Video:
  • D-Sub 15-pin
  • Up to 1920x1200
  • Aspeed AST2300

• On-Board LAN:
  • Port Qty.: (3) GbE ports
  • Intel 82574L / Intel I350-AM2

• Form Factor/Dimensions:
  • SSI EEB
  • 12"x13" (305x330mm)
• Manageability:
  • Onboard Aspeed AST2300
  • IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
  • 24-bit high quality video compression / 10/100 Mb/s MAC interface

• Accessories:
  • (1) S7052 Motherboard
  • (1) User's manual / (1) Quick Ref. Guide
  • (1) TYAN installation CD
  • (1) I/O Shield(6) SATA signal cables
