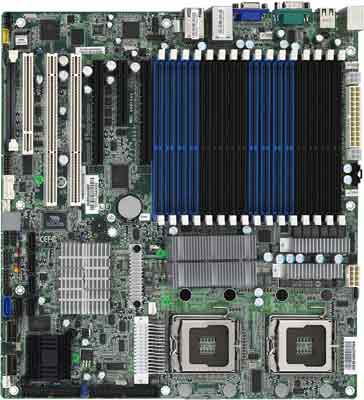

Tyan Tempest i5400PW S5397 (S5397AG2NRF) Motherboard

• Storage:
  • (6) SATA

  • 6321ESB
  • 3.0 Gb/s
  • RAID 0/1/10/5 (Intel Matrix RAID)
  • IDE Channel/Controller: Single channel/6321ESB

• Rear Panel I/O Ports:
  • (4) USB 2.0 ports (2 at rear, 2 via cable)
  • (2) COM ports (1 at rear, 1 via cable)
  • (1) PS/2 connector
  • (1) D-Sub 15-pin VGA port
  • (1) 2x5-pin header / (1) CD_IN header

• Internal I/O Interface:
  • (2) GbE ports / (1) RJ-45 port for IPMI
  • (1) SO-DIMM slot for optional TYAN SMDC M3295-2/ M3296
  • (1) 3x2-pin LCD module header
  • SSI 24-pin + 8-pin + 4-pin + 4-pin power connectors / EPS12V
  • (1) 2x9-pin TYAN front panel header (TYFP-I)
  • (1) FDD connector
  • (1) IDE connector
  • (6) SATA-II connectors

• BIOS:
  • Phoenix / 1MB
  • Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types / Multiple boot options

Motherboard Specifications

• Model:
  • Tyan Tempest i5400PW S5397 (S5397AG2NRF) Motherboard

• Processor Support:
  • Intel Xeon Quad-Core/ Dual-Core Processors 5100/ 5200/ 5300/ 5400 Series
  • Socket Type/Qty.: LGA771 / (2)

• Chipset:
  • Intel 5400B / 6321ESB
  • Winbond W83627

• FSB:
  • 1600/1333/1066 MHz

• Memory:
  • (16) DIMM slots
  • Fully-Buffered DIMM DDR2/ 800/667/533
  • Up to 128GB
  • Memory Channel/Voltage: 2 Channels per CPU/1.8V


• Expansion Slots:
  • (2) PCI-E Gen.2 x16 slots / (1) PCI-E x8 slot (w/ x4 link)
  • (2) PCI-X 64-bit 133/100MHz slots
  • (1) PCI 32-bit slot / PCI device component height limit =9.2mm

• On-Board Video:
  • D-Sub 15-pin
  • Up to 1600x1200
  • XGI Z9s
  • Video RAM: 32MB

• On-Board LAN:
  • Port Qty.: (3)

  • Intel 82563EB
  • Gigabit and Dual ethernet LAN


• Form Factor/Dimensions:
  • EATX Form Factor
  • 12"x13" (305x330mm)

• Hardware Monitoring:
  • Winbond W83793G
  • Monitors voltage for CPU, memory, chipset & power supply
  • FAN: Total (6) 4-pin headers
  • Monitors temperature for CPU & system environment
  • Fan fail LED indicator / Over temperature warning indicator
  • Chassis intrusion detection / Watchdog timer support
