• Hardware Monitoring:
  • Total of eleven 3-pin fan headers
  • Six fan headers with tachometer monitoring
  • One 2-pin chassis intrusion header
  • Temperature, voltage, and fan monitoring
  • Watchdog timer




• Server Management:
  • QLogic Zircon Baseboard Management Controller (BMC) based on powerful ARM7
  • Tailored for IPMI highest 1.5 Spec.
  • Supports KCS and BT styles
  • Supports flexible Windows and Linux based Management Solution
  • Supports RMCP and SNMP protocols
  • Supports ASF standard and EMP
  • I2C serial multi-master controllers and UARTs
  • Built-in IPMB connector
  • Supports remote Power on/off and reset support (IPMI over LAN); SMDC via built-in 2x25 header




• Rear Panel I/O Ports:
  • EPS12V power connectors
  • Stacked parallel (one), serial (one) and VGA (one) connectors
  • Stacked USB (two) and RJ-45 LAN (one) port
  • Side-by-side RJ-45 LAN (two) connectors
  • Stacked PS/2, keyboard, and mouse connectors


• Internal I/O Interface:
  • One floppy connector supports up to two drives
  • Two 9-pin serial ports (one connector and one header)
  • One 25-pin ECP/EPP/SPP parallel header
  • Four USB 1.1 ports (two rear, two via header)
  • PS/2 keyboard and mouse connectors

• Miscellaneous:
  • FCC DoC (Declaration of Conformity)
  • European Community CE


• LAN:
  • Intel® 82546EB dual-channel Gigabit Ethernet controller with LEDs - Two RJ-45 LAN connectors - Connected to independent 133MHz PCI-X bus
  • Intel® 82551QM Fast Ethernet controller - One RJ-45 LAN connector with LEDs - Three RJ-45 LAN connectors with LEDs

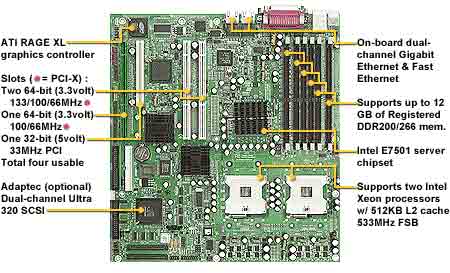

Motherboard Specifications

• Model:
  • Tyan Thunder i7501 Pro S2721GN-533


• Processor:
  • Dual mPGA604 ZIF sockets
  • Supports up to two Intel ® Xeon processors with 512KB of integrated L2 cache
  • Onboard VRM (VRM 9.1 spec)


• FSB (Front Side Bus):
  • Front-Side Bus support for 533MHz




• Chipset:
  • Intel ® E7501 server chipset
  • MCH +ICH3 +P64H2 +P64H2(optional) +FWH
  • Each Intel P64H2 supports two PCI-(X) buses
  • Winbond W83627HF Super I/O chip
  • Winbond W83782D hardware monitoring IC



• Memory:
  • Six 184-pin 2.5V DDR DIMM sockets
  • Supports up to 12GB of Registered DDR266/200
  • Dual channel memory bus
  • Supports Registered memory only
  • Supports ECC type memory modules


• Expansion Slots: (four usable slots)
  • Five independent PCI(-X) buses
  • Two 64-bit 133/100/66MHz (3.3V) PCI-X slots
  • One 64-bit 100/66MHz (3.3-Volt) PCI-X slot
  • One 32-bit 33MHz (5V) PCI slot


• IDE Controllers:
  • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices
  • Support for UDMA 33/66/100 IDE drives and ATAPI-compliant devices


• Video:
  • ATI Rage XL PCI graphics controller
  • 8MB Frame Buffer of video memory


• BIOS:
  • AMI BIOS 8.0 on 4Mbit Flash ROM
  • LAN remote boot (PXE) and SMBIOS v2.3
  • BIOS Boot Specification v3.1 (BBS) support
  • Auto configuration of IDE hard drive types

• Form Factor:
  • SSI EEB(Server System Infrastructure - Entry Level Electronics Bay) v3.0 footprint (12" x 13" - fits in many ATX-compliant tower chassis
