• BIOS:
  • AMI ® BIOS 8.0 on 4Mbit LPC Flash ROM
  • Supports APM 1.2 & ACPI 1.0
  • Power Management S1, S4, and S5 support


• Rear Panel I/O Ports:
  • Stacked PS/2 mouse and keyboard ports
  • Stacked two USB v1.1 ports + 1 RJ45 10/100 Base-T port w/ activity LED
  • Two 9-pin UART serial ports
  • One 15-pin VGA port
  • Two RJ45 10/100/1000 Base-T ports with activity LED

• Internal I/O Interface:
  • Dual IDE channels supports up to four EIDE devices
  • Supports for UDMA 33/66/100/133 IDE drives and ATAPI compliant devices
  • One floppy connector supports up to two drives
  • One 9-pin serial ports connector
  • Four USB v1.1 ports
  • Three front panel LAN activity LED connectors
  • One 25-pin parallel port connector

• Special Features:
  • Silicon Image Sil3114 SATA RAID Accelerator
  • Supports S-ATA 1.0 specification
  • Supports 4 channel SATA port for up to four SATA devices
  • Supports RAID 0, 1, 0+1
  • Connected to legacy 32-bit 33MHz PCI bus Integrated Dual Channel SCSI (option)
  • Adaptec AIC-7902W Ultra 320 SCSI controller
  • Connects to PCI-X Bridge A
  • Adaptec ® and Intel ® zero-channel RAID technology support


Motherboard Specifications

• Model:

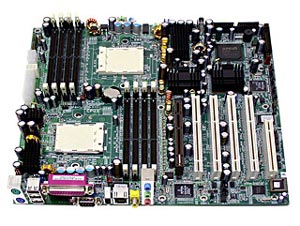

  • Tyan S2882U3GNR Thunder K8S Motherboard

• Processor Support:
  • Dual µPGA 940-pin ZIF sockets
    Supports up to two AMD Opteron processors
  • Two onboard 3-phase VRMs
  • Single or dual core processor support
    128-bit DDR dual-channel memory controller (integrated in CPU)

• Chipset:
  • AMD-8131 HyperTransport PCI-X Tunnel
  • AMD-8111 HyperTransport I/O Hub
  • Winbond W83627HF Super I/O ASIC
  • Analog Devices ADT7463 Hardware Monitoring IC

• Memory:
  • 128-bit DDR memory bus
    Eight 184-pin 2.5-Volt DDR DIMM sockets - Four per CPU
  • Supports up to 16GB of Registered DDR
    Supports ECC type memory modules
  • Supports PC3200 / 2700 / 2100 / 1600 DDR

• Expansion Slots:(Total of six usable slots)
  • PCI-X bridge A supports 64-bit 133/100/66/33 MHz with two 3.3V PCI-X slots (one with ZCR support - option)
  • PCI-X bridge B supports 64-bit 133/100/66/33 MHz with two 3.3V PCI-X slots
  • One legacy 32-bit 33MHz (5-Volt) PCI slot

• Integrated PCI Graphics:
  • ATI ® RAGE XL PCI graphics controller
  • 8MB Frame Buffer of video memory

• On-Board LAN:
  • Broadcom BCM5703C GbE controller
  • - One RJ-45 LAN connectors with LEDs
  • - Connected to PCI-X Bridge A
  • Intel 82551QM 10/100 LOM
  • - Operating at 32-bit/33MHz PCI bus

• Form Factor:
  • Extended ATX footprint (13" x 12", 304.8x330.2mm)
  • Two 3+1-pin CPU fan header with tachometer
    input and smart fan control (PWM)
  • EPS12V (24pin + 8pin) power connectors
  • Five 3-pin system fan headers with tachometer input, three of them with smart fan control
  • One 2-pin Chassis Intrusion header
  • Temperature, voltage and fan monitoring
