• BIOS:
  • 4Mbit Flash ROM; ACPI support
  • Auto-detection of memory size
  • Auto-configuration of IDE hard drive types
  • Multiple boot options
  • ACPI power management: S1, S4 and S5


• Hardware Monitoring:
  • Total six 3-pin fan monitoring headers
  • ADI ADM 1027 and/or Winbond W83782D monitoring ASICs
  • One 2-pin chassis intrusion header
  • Temperature, voltage, and fan monitoring
  • IPMB connector; Watchdog timer
  • Supports Tyan SMDC (Server Management Daughter Card)


• Rear Panel I/O Ports:
  • ATX12V power connectors
  • Two RJ45 connectors
  • Stacked serial (one) and VGA (one) connector
  • Stacked USB (two) connectors
  • Stacked keyboard and mouse connectors


• Internal I/O Interface:
  • One floppy connector supports two drives
  • Two 9-pin UART serial ports (one connector and one header via an optional cable)
  • One 25-pin ECP/EPP/SPP parallel header
  • Four USB 1.1 ports (two rear connectors and two front USB headers via optional cables)
  • PS/2 keyboard and mouse connectors


• Miscellaneous:
  • FCC Class B (Declaration of Conformity)
  • European Community CE

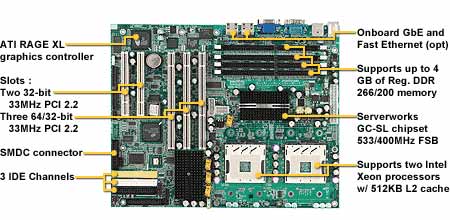

Motherboard Specifications

• Model:
  • Tyan Tiger GC-SL S2727GN


• Processor:
  • Dual PGA604 ZIF sockets
  • Supports up to two Intel ® Xeon processors
  • Onboard VRM (VRM 9.1 spec)


• FSB (Front Side Bus):
  • Front-Side Bus support for 533/400MHz


• Chipset:
  • ServerWorks Grand Champion SL chipset
  • CMIC-SL and CSB6
  • National PC87417 LPC Super I/O ASIC


• Memory:
  • Four 184-pin 2.5V DDR DIMM sockets
  • Supports up to 4GB of Registered DDR266/200
  • Supports ECC type memory modules
  • Memory address mapping in Enhanced Mapping Mode
  • Fault isolation, Extensive error reporting, CRC detection and correction


• Expansion Slots:
  • Three 64/32-bit 33MHz (3.3V) PCI 2.2 slots
  • Two 32-bit 33MHz (5V) PCI 2.2 slots
  • Total of five usable slots


• IDE Controllers:
  • Two ATA 100 and one ATA66 IDE channels
  • Supports up to six ATA/ATAPI IDE devices



• Video:
  • ATI Rage XL PCI graphics controller
  • 8MB frame buffer (SDRAM)


• LAN:
  • Two Intel Ethernet controller - one Intel 82551QM or 82550 10/100Mbps - one 82540EM GbE or 82551QM 10/100Mbps


• Form Factor:
  • ATX (12"x9.6"); 6-layer PCB
