Tyan Tiger GC-SL S2727GNN-533

Part # 107147

Condition : Refurbished

| Warranty: 30 days

Brand : Tyan

| Log in to add review

Rate this product:

Quantity: Out of Stock

Click "Notify" to get an alert when it's available

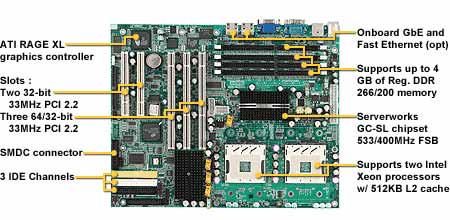

Tyan Tiger GC-SL S2727GN-533 Socket 604 Motherboard

Tyan Tiger GC-SL S2727GN-533 Socket 604 Motherboard, Intel Based Socket 604, ServerWorks Grand Champion SL chipset, ATX Form Factor, Onboard Video, Dual LAN, Up to 4 GB in Ram DDR, 3 PCI 64 bits, 2 PCI 32 bits, ATX Factor

BIOS:
- 4Mbit Flash ROM; ACPI support
- Auto-detection of memory size
- Auto-configuration of IDE hard drive types
- Multiple boot options
- ACPI power management: S1, S4 and S5

Hardware Monitoring:
- Total six 3-pin fan monitoring headers
- ADI ADM 1027 and/or Winbond W83782D monitoring ASICs
- One 2-pin chassis intrusion header
- Temperature, voltage, and fan monitoring
- IPMB connector; Watchdog timer
- Supports Tyan SMDC (Server Management Daughter Card)
Rear Panel I/O Ports:
- ATX12V power connectors
- Two RJ45 connectors
- Stacked serial (one) and VGA (one) connector
- Stacked USB (two) connectors
- Stacked keyboard and mouse connectors
Internal I/O Interface:
- One floppy connector supports two drives
- Two 9-pin UART serial ports (one connector and one header via an optional cable)
- One 25-pin ECP/EPP/SPP parallel header
- Four USB 1.1 ports (two rear connectors and two front USB headers via optional cables)
- PS/2 keyboard and mouse connectors
Miscellaneous:
- FCC Class B (Declaration of Conformity)
- European Community CE

Motherboard Specifications

Model:
- Tyan Tiger GC-SL S2727GN-533

Processor:
- Dual PGA604 ZIF sockets
- Supports up to two Intel ® Xeon processors
- Onboard VRM (VRM 9.1 spec)

FSB (Front Side Bus):
- Front-Side Bus support for 533/400MHz
Chipset:
- ServerWorks Grand Champion SL chipset
- CMIC-SL and CSB6
- National PC87417 LPC Super I/O ASIC
Memory:
- Four 184-pin 2.5V DDR DIMM sockets
- Supports up to 4GB of Registered DDR266/200
- Supports ECC type memory modules
- Memory address mapping in Enhanced Mapping Mode
- Fault isolation, Extensive error reporting, CRC detection and correction

Expansion Slots:
- Three 64/32-bit 33MHz (3.3V) PCI 2.2 slots
- Two 32-bit 33MHz (5V) PCI 2.2 slots
- Total of five usable slots

IDE Controllers:
- Two ATA 100 and one ATA66 IDE channels
- Supports up to six ATA/ATAPI IDE devices
Video:
- ATI Rage XL PCI graphics controller
- 8MB frame buffer (SDRAM)
