Tyan Tomcat i7230B (S5161G3NR)

Tyan Tomcat i7230B (S5161G3NR)

Part # 108338

Condition : New- Retail Box

| Warranty: 365 days

Brand : Tyan
| Log in to add review

Rate this product:


Loading...

Click "Notify" to get an alert when it's available

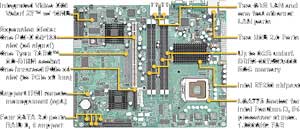

Tyan Tomcat i7230B (S5161G3NR) Motherboard

Tyan Tomcat i7230B (S5161G3NR) Motherboard

Socket 775 for Intel Pentium 4 with Integrated Video, LAN, USB, 1 PCI Express x4, Intel E7230, 4 DDR2 667/533, RAID, SATA2 Support.

Tyan Tomcat i7230B (S5161G3NR) Motherboard, Socket LGA775, Chipset Intel ® E7230, Integrated Video, LAN, USB, 1 PCI Express x8, Intel E7230, DDR2 667/533 Support, ATX Form Factor

  • Internal I/O Interface:
    • One floppy connector; one IDE connector
    • Four SATA-II ports
    • Six USB 2.0 ports (two at rear, four via cable)
    • Two COM ports (one at rear, one via cable)
    • Tyan 2 x 9 front-panel pin header
    • Tyan 2 x 6 front-panel pin header for LAN LED and ID LED/Switch
    • Two 25-pin connector for Tyan IPMI SMDC (opt.)

  • Storage/RAID:
    • Supports four SATA-II ports running at 3.0Gb/s
    • RAID 0/1/5/10 capable (RAID 5/10 is only supported under Windows)
    • One ATA-100 ch. for up to two ATA-100 devices
  • On-Board Video:
    • XGI Volari 27 (XG20)
    • 16MB frame buffer mem. (upgradeable to 32MB)

  • Manageability:
    • SMSC SCH5017 and EMC6D103 with hardware monitoring
    • One (1) 3+1-pin CPU fan headers w/ tachometer monitoring and smart FAN control (by SCH5017)
    • Five (5) 3+1-pin system fan headers with tachometer monitoring, three (3) of them support smart FAN control
    • Temperature and voltage monitoring
    • Watchdog timer support; port 80 code display LED

  • Rear Panel I/O Ports:
    • Stacked PS/2 mouse & keyboard ports
    • Stacked two USB 2.0 ports & one RJ45 10/100
    • Two side-by-side RJ45 10/100/1000 ports
    • One 9-pin COM port; one 15-pin VGA port

Tomcat i7230B Specifications

  • Model:
    • Tyan Tomcat i7230B (S5161G3NR)
  • Processor Support:
    • Single LGA775 socket
    • Supports Intel Pentium 4 and Pentium D processor (Prescott/Smithfield/Cedar)
    • FSB support 1066/800/533
  • Chipset:
    • Intel ® E7230 (Mukilteo) MCH + ICH7-R chipset
    • PXH-V 64-bit PCI Hub

  • FSB:
    • 1066/800/533 MT/s

  • Memory:
    • Four 240-pin DDR2 DIMM sockets
    • Supports ECC DIMMS
    • Maximum of 8GB unbuffered DDR2-667/533

  • Expansion Slots:
    • One PCI-X 64/133 slot in-lined with one inversed PCI Express x4 slot (routed to PCI Express x8 bus from MCH)
    • One Tyan TARO SO-DIMM socket
  • On-Board LAN:
    • Two Intel ® i82573V GbE LAN controllers
      - Operating at PCIe x1 interface
    • One Intel ® i82551QM fast ethernet LAN controller
      - Operating at PCI 32/33 interface

  • BIOS:
    • Phoenix BIOS® on 8Mbit LPC Flash ROM
    • Supports APM 1.2 and ACPI
    • Serial Console Redirect; USB boot supported
    • PnP, DMI2.0, WfM2.0 Power Management
    • S0/S1/S4/S5 states supported
  • Form Factor:
    • ATX footprint (12" x 9.6", 305 x 244mm)
    • ATX 12V, universal 24 + 8 pin power connectors
