• Storage:
  • Integrated SATA II Controller
  • -SATA-II Host controllers embedded
  • -Supports four SATA-II ports running at 3.0Gb/s
  • -RAID 0, 1, 0+1 and JBOD support
  • -SATA activity LED connector
  • Integrated PCI IDE
  • Dual-ch. master mode supports four IDE devices
  • Supports for ATA-133/100/66/33 IDE drives
    and ATAPI compliant devices

• Rear Panel I/O Ports:
  • Stacked PS/2 keyboard and mouse connectors
  • Stacked Serial (1) connector
  • One 15-pin VGA port
  • Four audio jacks
  • One 25-pin SPP/ECP/EPP parallel port
  • Stacked two USB v2.0 ports and one RJ45
    (Marvell 88E1111-CAA PHY + nVIDIA MAC)
    10/100/1000 Base-T port w/ link/activity LED
  • Stacked two USB v2.0 ports and one RJ45
    (BCM5721) 10/100/1000 Base-T port with
    link/activity LED

• Internal I/O Interface:
  • (1) Floppy connector support up to two drives
  • One Parallel pin header
  • (1) serial port connector
  • Tyan 2 x 9 front-panel pin header
  • 2 x 25 pin SMDC pin header (supports M3290)
  • Four USB v2.0 ports (via cable)

• System Management:
  • SMSC DME1737 w/ hardware monitoring
  • One 4-pin CPU fan with auto fan control
  • Four 4-pin system fan headers (three with
    tachometer input and four with auto fan control)
  • One 3-pin chassis fan connecrtor.
  • Temperature and voltage monitoring
  • Watchdog timer support

Motherboard Specifications

• Model:

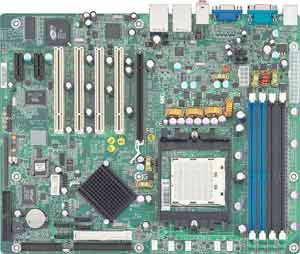

  • Tyan Tomcat K8E S2865ANRF Motherboard

• Processor Support:
  • µPGA 939-pin socket; supports AMD Athlon ,
    X2, FX processors
  • Up to 1 GHz Hyper-Transport link support

• Chipset:
  • nVIDIA nForce4 core-logic; SMSC DME1737

• Memory:
  • Dual memory channels
  • Supports up to four DDR-400/333 DIMMs
  • Up to 4GB of unbuffered, ECC/Non-ECC memory

• Expansion Slots:
  • One x16 PCI Express connector for graphics
  • Four 32-bit 33MHz PCI v2.3 slots
  • Two x1 PCI Express interface
  • Total of seven usable expansion slots

• Integrated Audio:
  • Realtek ALC655 5.1 channel audio CODEC
  • AC'97 Rev.2.3 supported; CD-in connector
  • 2 x 5 pin header for front panel audio connector

• On-Board LAN:
  • One Broadcom BCM5721 GbE controller
    - Operating at x1 PCI-E interface; ASF 2.0 support
    - Pin headers for front panel LAN LED
  • One CK8-04 integrated MAC with Marvell
    88E1111-CAA GbE PHY (S2865ANRF SKU)
    - 32bit PCI v2.3 interface
    - IEEE802.3 compliant, WOL/PXE support
    - Pin header for front panel LAN LED

• Integrated PCI Graphics
  • ATI ® RAGE XL PCI graphics controller
  • 8MB Frame Buffer of video memory

• Integrated FireWire (IEEE 1394a)
  • VIA VT6307 PCI FireWire (1394a) controller
  • Two 1394a ports (via cable)

• BIOS:
  • Award BIOS 8Mbit Flash
  • Supports APM 1.2 & ACPI 1.0
  • PnP, DMI2.0, WfM2.0 Power Management

• Form Factor:
  • ATX footprint (12" x 9.6"; 305mm x 244mm
  • ATX12V support, on board 4-phase VRM
  • Universal 24-pin + 8-pin power connectors
  • 4-pin auxiliary power connector
