Two LAN controllers - one Intel 82545EM 10/100/1000 controller - one Intel 82551QM 10/100 controller - option for 2nd GbE port with Intel 82540EM (S2707G2N-533)
Intel 82545EM Gigabit Ethernet connected to PCI-X bus
Hardware Monitoring:
CPU temperature/voltage monitoring
Four 3-pin fan headers, three of which can be monitored and controlled
One 2-pin chassis intrusion headers
Winbond W83782D hardware monitoring ASIC
Miscellaneous:
FCC DoC (Declaration of Conformity)
European Community CE
Rear Panel I/O Ports:
ATX12V power connectors
Stacked parallel (one), serial (one) and VGA (one) ports
Stacked USB (two) connectors
Side-by-side LAN (two) ports
Stacked PS/2 keyboard and mouse connectors
Internal I/O Interface:
One floppy connector supports up to two drive
Two 9-pin 16550-based serial ports (one via optional cable)
One 25-pin ECP/EPP/SPP parallel connector
Four USB 1.1 ports (two via optional cable)
PS/2 keyboard and mouse ports

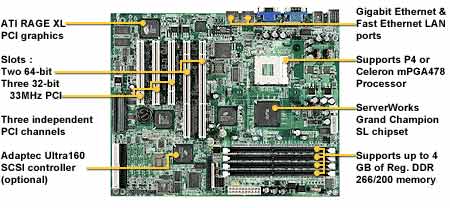

Motherboard
Specifications
Model:
Tyan Trinity GC-SL S2707GNN-533
Processor:
mPGA478 ZIF socket
Supports one Intel ® Pentium ® 4 with Hyper-Threading processor
or
Celeron (mPGA478) processor
