Via EPIA MII

Via EPIA MII

Part # 108573

Condition : New- Retail Box

| Warranty: 365 days

Brand : Via
| Log in to add review

Rate this product:


Loading...

Click "Notify" to get an alert when it's available

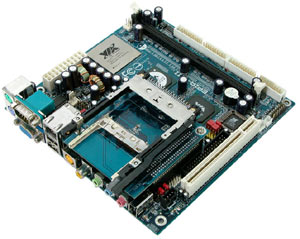

VIA EPIA MII Motherboard

VIA EPIA MII Motherboard

VIA C3 On-board processor, VIA CLE266 chipset, 1 PCI, 1 DDR, On-board Audio, Video, LAN, USB, Firewire, CardBus type I and II. Mini ITX.

VIA C3 On-board processor, VIA CLE266 chipset, 1 PCI, 1 DDR, On-board Audio, Video, LAN, USB, Firewire, CardBus type I and II. Mini ITX.

  • Internal I/O Interface:
    • VIA VT1622A TV Ou
    • VIA VT6307S IEEE 1394 (Optional)
    • 1 USB connector for 2 additional USB 2.0 ports
    • 1 Front-panel audio connectors (mic-in and line-out)
    • 1 CD Audio-in connector
    • 1 Buzzer
    • 1 FIR connector
    • 1 CIR connector (Switchable for KB/MS)
    • 1 Wake-on-LAN connector
    • 1 LPT port header
    • CPU/Sys FAN/Fan 3
    • 1 Connector for LVDS module (Optional)
    • 1 Serial port connector for second COM port
    • ATX Power Connector

  • Storage:
    • 2 X UltraDMA 133/100/66 Connector
    • 1 x FDD Connector
    • CardBus Type I & Type II
    • Ricoh R5C476 II / R5C485 CardBus Corntroller
  • BIOS:
    • Award BIOS
    • 2/4Mbit flash memory
  • Manageability:
    • CPU voltage monitoring
    • Wake-on-LAN, Keyboard Power-on, Timer Power-on
    • System power management
    • AC power failure recovery

EPIA MII Specifications

  • Model:
    • VIA EPIA MII

  • Processor Support:
    • VIA C3/ VIA Eden EBGA processor

  • Chipset:
    • VIA CLE266 North Bridge
    • VIA VT8235 South Bridge

  • Memory:
    • 1 DDR266 DIMM socket
    • Up to 1GB memory size


  • Expansion Slots:
    • 1 PCI

  • On-Board Audio:
    • VIA VT1616 6 channel AC™97 Codec

  • On-Board Video:
    • Integrated VIA Unichrome AGP graphics w/MPEG-2 Accelerator

  • On-Board LAN:
    • VIA VT6103 10/100 Base-T Ethernet PHY

  • Rear Panel I/O Ports:
    • 1 CardBus Type I and Type II slot +1 CompactFlash Slot
    • 1 CompactFlash slot
    • 1 RJ-45 LAN port
    • 1 PS2 mouse port
    • 1 PS2 keyboard port
    • 1 Serial port
    • 2 USB 2.0 ports
    • 1 VGA port
    • 1 RCA port (SPDIF or TV-Out)
    • 1 S-Video port
    • 1 1394 port
    • 3 Audio jacks: line-out, line-in and mic-in (Smart 5.1 Support)

  • Form Factor:
    • Mini-ITX (6 layer)
    • 6.7" x 6.7"
