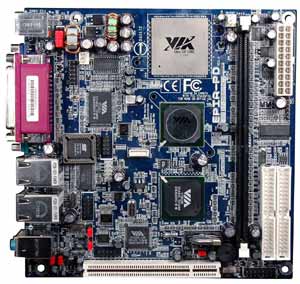

VIA EPIA PD Motherboard

On-board VIA C3 processor, VIA CLE266 chipset, 1 DDR, 1 PCI, On-board Audio, Video, LAN, USB. Micro ITX form factor.

Internal I/O Interface:
- 1 USB connector for 2 additional USB 2.0 ports
- Front-panel audio connectors (mic-in and line-out)
- 1 Buzzer
- SIR connector
- CIR connector (Switchable for KB/MS)
- Wake-on-LAN
- CPU/Sys FAN/Fan 3
- 1 Connector for LVDS module
- 3 Serial port connector for 3 additional com port; 3/4 com port with 5V or 12V power jumper selection (Default power setting is 5V)
- ATX Power Connector
Storage:
- 2 X UltraDMA 133/100/66 Connector

Manageability:
- CPU voltage monitoring
- Wake-on-LAN, Keyboard Power-on, Timer Power-on
- System power management
- AC power failure recovery

EPIA PD Specifications

On-Board Video:
- Integrated VIA UniChrome AGP graphics with MPEG-2 Accelerator

On-Board LAN:
- VIA VT6105 LOM+VT6103 10/100 Base-T Ethernet PHY
Rear Panel I/O Ports:
- 2 RJ-45 LAN port
- 1 PS2 mouse port
- 1 PS2 keyboard port
- 1 Serial port
- 1 Parallel
- 4USB 2.0 ports
- 1 VGA port
- 3 Audio jacks: line-out, line-in and mic-in
