Tyan Tiger I7501R S2735G3NR-8M dual xeon server board. Specifications, price and availability. S2735-8M

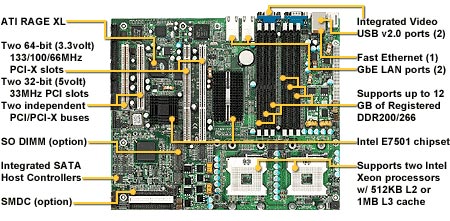

Tyan Tiger I7501R S2735G3NR-8M Motherboard
Tyan S2735-8M
Integrated I/O:
One floppy connector supports up
to two drives
Two 9-pin serial ports (one
connector and one header)
One 25-pin ECP/EPP/SPP
parallel header
Four USB 2.0 ports (two rear & two via header)
Two RJ-45 Side-by-side connectors with LED
PS/2 keyboard and mouse
connectors
Integrated PCI (Parallel ATA)
Provides two PCI bus master channels for up to four UDMA IDE devices
Support for UDMA 100/66/33 IDE/ATAPI devices
Integrated Serial ATA Host
Controllers:
Provides independent DMA operation on 2 ports
Data
transfer rates up to 150MB/s
Supports RAID 0, 1 (with 82801ER/ICH5R chip)
Note:
Maximum number of IDE devices supported with any combination of
Integrated IDE and SATA IDE is four devices. For example: 2 SATA and 2
P-ATA (total = 4)
BIOS:
AMI BIOS 8.0 on 4 Mbit Flash ROM
LAN remote boot (PXE) & SMBIOS v2.3
support
BIOS Boot Specification v3.1 (BBS)
support
Auto configuration of IDE hard drive
types
Server Management:
QLogic Zircon Baseboard
Management Controller (BMC) based on powerful ARM7
Tailored for IPMI highest 1.5
Spec.
Supports KCS and BT styles
Supports flexible Windows and
Linux based
Management Solution
Supports RMCP and SNMP protocols
Supports ASF standard and EMP
I2C serial multi-master
controllers and UARTs
Built-in IPMB connector
Supports remote Power on/off & reset support
(IPMI over LAN); SMDC via built-in 2x25 header
System Management:
Total of nine 3-pin fan headers
Six fan headers with tachometer monitoring
One 2-pin chassis intrusion header
Temperature, voltage, and fan monitoring
Watchdog time
Motherboard
Specifications
Model:
Tyan Tiger I7501R S2735G3NR-8M Motherboard
Processor Support:
Dual mPGA604 ZIF sockets
Supports up to two Intel Xeon processors with 512K L2 cache 533MHz, 400MHz FSB and 1MB L3 cache
533MHz FSB
