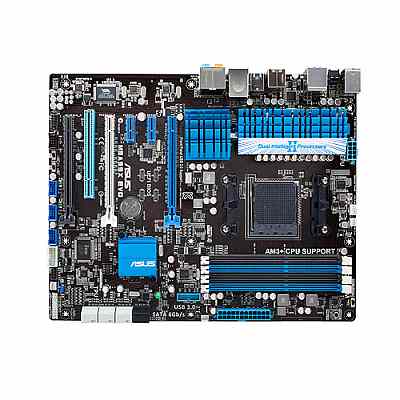

ASUS M5A99X EVO Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x eSATA 3Gb/s
  • 1 x Power eSATA 3Gb/s
  • 1 x IEEE 1394a
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.0
  • 8 x USB 2.0
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)
• Internal I/O Interface:
  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, blue)
  • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  • 1 x COM port(s) connector(s)
  • 6 x SATA 6Gb/s connector(s)
  • 2 x SATA 3Gb/s connector(s)
  • 1 x IEEE 1394a connector(s)
  • 1 x CPU Fan connector(s) (4 -pin)
  • 3 x Chassis Fan connector(s) (1 x 4 -pin, 2 x 3 -pin)
  • 1 x Power Fan connector(s) (1 x 3 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s) (Q-Connector)
  • 1 x MemOK! button(s)
  • 1 x TPU switch(es)
  • 1 x EPU switch(es)
  • 1 x Clear CMOS jumper(s)

• USB Ports:
  • ASMedia ® USB 3.0 controller :
  • 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
  • AMD SB950 controller :
  • 14 x USB 2.0 port(s) (8 at back panel, black+red, 6 at mid-board)
• Over clocking Features:
  • Overclocking Protection :
  • ASUS C.P.R.(CPU Parameter Recall)
• Accessories:
  • User's manual
  • I/O Shield
  • 4 x SATA 6Gb/s cable(s)
  • 1 x SLI bridge(s)
  • 1 x Q-connector(s) (2 in 1)
• On-Board LAN:
  • Realtek ® 8111E , 1 x Gigabit LAN Controller(s)

• BIOS:
  • 32 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2
• IEEE 1394:
  • VIA ® 6308P controller
  • 2 x IEEE 1394a port(s)
    (1 at mid-board, 1 at back panel)
• Support Disc:
  • Drivers
  • ASUS Utilities
  • ASUS Update
  • Anti-virus software (OEM version)
• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Motherboard Specifications

• Model:
  • ASUS M5A99X EVO Motherboard

• CPU:
  • AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
  • Supports AM3+ 32 nm CPU
  • Supports CPU up to 8 cores
  • Supports CPU up to 140 W
  • AMD Cool 'n' Quiet Technology
• System Bus:
  • Up to 5.2 GT/s HyperTransport 3.0
• Chipset:
  • AMD 990X/SB950
• Memory:
  • 4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows ® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows ® OS when you want to install 4GB or more memory on the motherboard.
    * Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
• Expansion Slots:
  • 2 x PCIe 2.0 x16 (x16 or dual x8)
  • 1 x PCIe 2.0 x16 (x4 mode, black)
  • 2 x PCIe 2.0 x1
  • 1 x PCI
• On-Board Audio:
  • Realtek ® ALC 892 8-Channel High Definition Audio CODEC
    Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Audio Feature :
    Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
    DTS Surround Sensation UltraPC
    ASUS Noise Filter
    Optical S/PDIF out port(s) at back panel
• Multi-GPU Support:
  • Supports NVIDIA ® Quad-GPU SLI Technology
    Supports AMD Quad-GPU CrossFireX Technology
• Storage:
  • AMD SB950 controller :
  • 6 x SATA 6Gb/s port(s), gray
  • Support Raid 0, 1, 5, 10
  • JMicron ® JMB362 controller :
  • 2 x SATA 3Gb/s port(s), black
  • 1 x Power eSATA 3Gb/s port(s), green
  • 1 x eSATA 3Gb/s port(s), red
• Special Features:
  • ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
  • ASUS TPU :
    Auto Tuning
    TurboV
    TPU switch
  • ASUS EPU :
    EPU
    EPU switch
  • ASUS Digital Power Design :
    Industry leading Digital 6 +2 Phase Power Design
    ASUS DIGI+ VRM Utility
  • ASUS Exclusive Features :
    MemOK!
    AI Suite II
    Ai Charger+
    Front Panel USB 3.0 Support
    ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  • ASUS Quiet Thermal Solution :
    Stylish Fanless Design Heat-pipe solution
    ASUS Fan Xpert
  • ASUS EZ DIY :
    ASUS Q-Shield
    ASUS O.C. Profile
    ASUS EZ Flash 2
    ASUS MyLogo 2
    Multi-language BIOS
  • ASUS Q-Design :
    ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    ASUS Q-Slot
    ASUS Q-DIMM
    ASUS Q-Connector

• Form Factor:
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
