Asus F1A75-M LE

Part # 113004

Condition : New | Warranty : 1 year

Brand : Asus
0 review | Add Your Review

$0.00

ASUS F1A75-M LE Motherboard. Specifications, price and availability

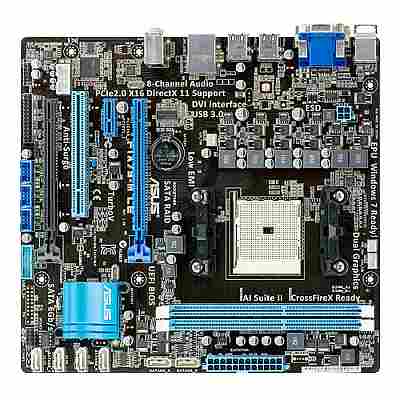

ASUS F1A75-M LE Motherboard

ASUS F1A75-M LE Motherboard, Supports AMD Socket FM1 A- Series/E2- Series Accelerated Processors, 1 PCI Slot, 1 PCI Slot X1, 2 PCI Express x16 slots, Support for SATA3, Raid, VGA Port, DVI-D Port, DDR3 RAM, On Board Audio, Video, LAN, 14 USB ports, Micro ATX form Factor.



ASUS F1A75-M LE Motherboard

ASUS F1A75-M LE Motherboard

  • Rear Panel I/O Ports:
    • 1 x PS/2 keyboard (purple)
    • 1 x PS/2 mouse (green)
    • 1 x DVI-D
    • 1 x D-Sub
    • 1 x LAN (RJ45) port(s)
    • 2 x USB 3.0
    • 4 x USB 2.0
    • 3 x Audio jack(s)
  • Internal I/O Interface:
    • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
    • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    • 1 x COM port(s) connector(s)
    • 6 x SATA 6Gb/s connector(s)
    • 1 x CPU Fan connector(s)
    • 1 x Chassis Fan connector(s)
    • 1 x Power Fan connector(s)
    • 1 x S/PDIF out header(s)
    • 1 x 24-pin EATX Power connector(s)
    • 1 x 4-pin ATX 12V Power connector(s)
    • 1 x parallel port connector(s)
    • 1 x Front panel connector(s)
    • 1 x Front panel audio connector(s) (AAFP)
    • 1 x Internal speaker connector(s)
  • USB Ports:
    • AMD A75 FCH (Hudson D3) chipset :
    • 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
    • AMD A75 FCH (Hudson D3) chipset :
    • 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
  • Over clocking Features:
    • Overclocking Protection :
    • ASUS C.P.R.(CPU Parameter Recall)
  • Accessories:
    • User's manual
    • I/O Shield
    • 2 x SATA 6Gb/s cable(s)
  • On-Board LAN:
    • Realtek ® 8111E , 1 x Gigabit LAN Controller(s)
  • BIOS:
    • 32 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
  • Support Disc:
    • Drivers
    • ASUS PC Probe II
    • ASUS Update
    • Anti-virus software (OEM version)







Motherboard Specifications

  • Model:
    • ASUS F1A75-M LE Motherboard
  • CPU:
    • AMD Socket FM1 A- Series/E2- Series Accelerated Processors
    • Supports CPU up to 4 cores
    • Supports AMD ® Turbo Core 2.0 Technology
      * The AMD ® Turbo Core 2.0 Technology Support depends on the APU types
  • Chipset:
    • AMD A75 FCH (Hudson D3)
  • Memory:
    • 2 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
    • Dual Channel Memory Architecture
      * The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
      * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
  • Expansion Slots:
    • 1 x PCIe 2.0 x16 (blue)
    • 1 x PCIe 2.0 x16 (x4 mode, black)
    • 1 x PCIe 2.0 x1
    • 1 x PCI
  • On-Board Audio:
    • Realtek ® ALC 887 8-Channel High Definition Audio CODEC
    • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Multi-GPU Support:
    • Supports AMD CrossFireX Technology
  • On-Board Video:
    • Integrated AMD Radeon HD 6000 Series Graphics in Llano APU
    • Multi-VGA output support : DVI/RGB ports
    • Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
    • Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
    • AMD ® Dual Graphics technology support *1
    • Supports DirectX 11
  • Storage:
    • AMD A75 FCH (Hudson D3) chipset : *2
    • 6 x SATA 6Gb/s port(s), gray
    • Support Raid 0, 1, 10, JBOD
  • Special Features:
    • ASUS EPU :
      EPU
    • ASUS Power Design :
      4 +2 Phase Power Design
    • TurboV
    • ASUS Exclusive Features :
      AI Suite II
      Ai Charger
      Anti-Surge
      ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    • ASUS Quiet Thermal Solution :
      Stylish Fanless Design Heat-sink solution
      ASUS Fan Xpert
    • ASUS EZ DIY :
      ASUS CrashFree BIOS 3
      ASUS EZ Flash 2
      ASUS MyLogo 2
    • 100% All High-quality Conductive Polymer Capacitors

  • Form Factor:
    • uATX Form Factor
    • 9.6 inch x 9 inch ( 24.4 cm x 22.9 cm )
