asRock X79 Extreme7

Part # 113541

Condition : New | Warranty : 1 year

Brand : asRock
0 review | Add Your Review

$331.25

asRock X79 Extreme7 Motherboard. Specifications, price and availability

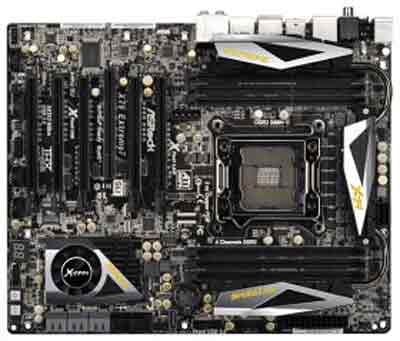

asRock X79 Extreme7 Motherboard

Intel Socket 2011 Motherboard, with 5 PCI-e x16 Slots/1 PCI Slot, on board audio and LAN, 6 USB Ports, 6 SATA Ports, 1 x eSATA3 Connector, 6 DIMM Slots and ATX Form Factor



asRock X79 Extreme7 Motherboard

asRock X79 Extreme7 Motherboard

  • Storage:
    • 2 x SATA3 6.0 Gb/s connectors by Intel ® X79, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel ® Rapid Storage 3.0), NCQ, AHCI and "Hot Plug" functions
    • 2 x SATA3 6.0 Gb/s connectors by Marvell SE9182, support RAID (RAID 0 and RAID 1), NCQ, AHCI and "Hot Plug" functions
  • Rear Panel I/O Ports:
    • 1 x PS/2 Mouse Port
    • 1 x PS/2 Keyboard Port
    • 1 x Coaxial SPDIF Out Port
    • 1 x Optical SPDIF Out Port
    • 6 x Ready-to-Use USB 2.0 Ports
    • 1 x eSATA3 Connector
    • 2 x Ready-to-Use USB 3.0 Ports
    • 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    • 1 x IEEE 1394 Port
    • 1 x Clear CMOS Switch with LED
    • HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    • 2 x Rear USB 3.0 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s
    • 2 x Front USB 3.0 headers (support 4 USB 3.0 ports) by TI, supports USB 1.0/2.0/3.0 up to 5Gb/s
    • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel ® Rapid Storage 3.0), NCQ, AHCI and Hot Plug functions
    • 7 x SATA3 6.0 Gb/s connectors
    • 1 x IR header
    • 1 x CIR header
    • 1 x COM port header
    • 1 x HDMI_SPDIF header
    • 1 x IEEE 1394 header
    • 1 x Power LED header
    • CPU/Chassis/Power/SB FAN connector
    • 24 pin ATX power connector
    • 8 pin 12V power connector
    • SLI/XFire power connector
    • Front panel audio connector
    • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
    • 2 x USB 3.0 headers (support 4 USB 3.0 ports)
    • 1 x Dr. Debug with LED
  • Special Features:
    • ASRock Extreme Tuning Utility (AXTU)
    • ASRock Instant Boot
    • ASRock Instant Flash
    • ASRock APP Charger
    • ASRock XFast USB
    • ASRock XFast LAN
    • ASRock XFast Charger
    • ASRock XFast RAM
    • ASRock X-FAN
    • ASRock Crashless BIOS
    • Hybrid Booster:
    • CPU Frequency Stepless Control
    • ASRock U-COP
    • Boot Failure Guard (B.F.G.)
    • Good Night LED
  • Hardware Monitoring:
    • CPU Temperature Sensing
    • Chassis Temperature Sensing
    • CPU/Chassis/Power/SB Fan Tachometer
    • CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
    • CPU/Chassis/SB Fan Multi-Speed Control
    • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
    • Certifications: O.S:  Microsoft ® Windows ® 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant

Motherboard Specifications

  • Model:
    • asRock X79 Extreme7 Motherboard
  • Processor Support:
    • Supports Intel ® Core i7 processor family for the LGA 2011 Socket
    • Digi Power Design
    • Advanced 12 + 2 Power Phase Design
    • Supports Intel ® Turbo Boost 2.0 Technology
    • Supports Hyper-Threading Technology
    • Supports Untied Overclocking Technology
  • Chipset:
    • Intel ® X79
  • Memory:
    • Quad Channel DDR3 memory technology
    • 6 x DDR3 DIMM slots
    • Supports DDR3 2400+(OC)/1600/1333/1066/800 non-ECC, un-buffered memory
    • Supports DDR3 ECC, un-buffered memory with Intel ® Workstation 1S Xeon processors E5 16xx/26xx/46xx series in socket LGA 2011
    • Max. capacity of system memory: 48GB
    • Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2
  • Expansion Slots:
    • 5 x PCI Express 3.0 x16 slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5: x8/8/8/8/8 mode or x16/0/16/0/8 mode)
    • 1 x PCI slot
    • Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
    • Supports NVIDIA ® Quad SLI, 3-Way SLI and SLI
  • On-Board Audio:
    • 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)
    • Premium Blu-ray audio support
    • Supports THX TruStudio
  • On-Board LAN:
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • Broadcom BCM57781
    • Supports Wake-On-LAN
    • Supports Energy Efficient Ethernet 802.3az
    • Supports Dual LAN with Teaming function
    • Supports PXE
  • Form Factor/Dimensions:
    • ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    • Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
  • Accessories:
    • 1 x ASRock SLI_Bridge_2S Card
    • 1 x ASRock 3-Way SLI-2S1S Bridge Card
    • Quick Installation Guide, Support CD, I/O Shield
    • 6 x SATA Data Cables
    • 2 x SATA 1 to 1 Power Cables
    • 1 x Front USB 3.0 Panel
    • 4 x HDD Screws
    • 6 x Chassis Screws
    • 1 x Rear USB 3.0 Bracket
  • BIOS:
    • 64Mb AMI UEFI Legal BIOS with GUI support
    • Supports "Plug and Play"
    • ACPI 1.1 Compliance Wake Up Events
    • Supports jumperfree
    • SMBIOS 2.3.1 Support
    • CPU, VCCSA, DRAM, VTT, CPU PLL, PCH1.1V, PCH1.5V Voltage Multi-adjustment
    • Smart Switch: - 1 x Power Switch with LED
    • 1 x Reset Switch with LED
    • 1 x Clear CMOS Switch with LED
    • Support C.D: - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (ASRock MAGIX Multimedia Suite - OEM)
