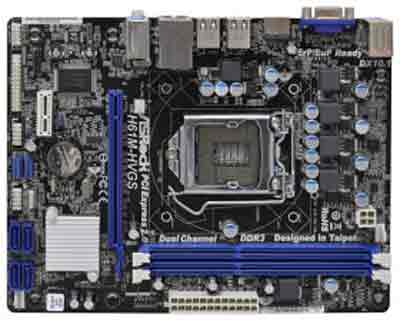

asRock H61M-HVGS
Motherboard
- Storage:
- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and
Hot Plug functions
- Rear Panel I/O Ports:
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and
SPEED LED)
- HD Audio Jack: Line in / Front Speaker /
Microphone
- Internal I/O
Interface:
- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and
Hot Plug functions
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- BIOS:
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage
Multi-adjustment
- Special Features:
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- Drivers, Utilities, AntiVirus Software (Trial
Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia
Suite
- OEM
- Microsoft ® Windows ® 8 / 8 64-bit / 7 / 7
64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is
required)
- Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
|
Motherboard Specifications
- Model:
- asRock H61M-HVGS Motherboard
- Processor Support:
- Supports 3rd and 2nd Generation Intel ® Core
i7 / i5 / i3 in LGA1155 Package
- Supports Intel ® Turbo Boost 2.0 Technology
- Supports Intel ® K-Series unlocked CPU
- Supports Hyper-Threading Technology
- Chipset:
- Intel ® H61
- Supports Intel ® Rapid Start Technology and
Smart Connect Technology
- Memory:
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered
memory
- Max. capacity of system memory: 16GB*
- Supports Intel ® Extreme Memory Profile (XMP)
1.3 / 1.2 with Intel ® Ivy Bridge CPU
- Expansion Slots:
- 1 x PCI Express 3.0 x16 slot (blue @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- On-Board Video:
- Supports Intel ® HD Graphics Built-in Visuals
: Intel ® Quick Sync Video 2.0, Intel ® InTru 3D,
Intel ® Clear Video HD Technology, Intel ® Insider,
Intel ® HD Graphics 2500/4000 with Intel ® Ivy Bridge CPU
- Supports Intel ® HD Graphics Built-in Visuals
: Intel ® Quick Sync Video, Intel ® InTru 3D,
Intel ® Clear Video HD Technology, Intel ® HD Graphics
2000/3000, Intel ® Advanced Vector Extensions (AVX) with
Intel ® Sandy Bridge CPU
- Pixel Shader 5.0, DirectX 11 with Intel ® Ivy
Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel ® Sandy
Bridge CPU.
- Max. shared memory 1760MB with Intel ® Ivy
Bridge CPU. Max. shared memory 1759MB with Intel ® Sandy Bridge CPU.
- Dual VGA Output: support HDMI and D-Sub ports by
independent display controllers
- Supports HDMI 1.4a Technology with max.
resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to
2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC
and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is
required)
- Supports HDCP function with HDMI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD
playback with HDMI port
- On-Board Audio:
- 5.1 CH HD Audio (VIA ® VT1705 Audio Codec)
- On-Board LAN:
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports PXE
- Form Factor/Dimensions:
- Micro ATX Form Factor: 8.9-in x 6.8-in, 22.6 cm x
17.3 cm
- Solid Capacitor for CPU power
- Hardware Monitoring:
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed
Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
|
