Home > Networks and Communications > Security & Surveillance > Exterior Cameras & devices > AGI PTZ617X

Click here to go back

115070 - AGI PTZ617X
Condition: New . Warranty:1 year . $780.00



AGI PTZ617X Sony ExviewHAD Camera for sale

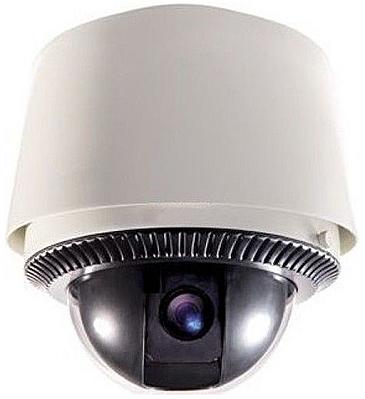

AGI PTZ617X Camera

36X Zoom Sony Exview HAD 24VAC Outdoor housing

AGI, PTZ617X, 36X, Zoom, Sony, ExviewHAD, 24VAC, 480TVL, 3.4-122.4mm, Outdoor, housing, specifications, availability, price, discounts, bargains

An installer favorite, the PTZ617X makes it a great all-around camera for both residential and commercial applications such as offices, loading docks, back yards and other locations where a nice overview is required.

Features
  • 1/4 inch SONY CCD
  • 480TVL
  • 36x Zoom 3.4-122.4mm
  • 0.1 preset accuracy
  • 400 /s pan preset speed and 150 /s tilt
  • 360 endless pan range
  • Weather Proof: IP66 standard
  • 250 Preset positions
  • Privacy zone masking (24 zones, while maximum 8 zones masked simultaneously in one image)

In the Box

  • Camera
  • AC Adapter (24V 2.3A)
  • Gloves
  • Plumbers Tape
  • CD Rom User Manual
Wall mount bracket NOT included. (VC-B-PTZ-600WM)

Specifications:

Brand AGI
Model PTZ617X
Effective Pixels NTSC: 768 (H)494 (V)
Sensor Type 1/4 inch SONY EXVIEW CCD
Scanning System NTSC
Video Output 1.0Vpp/75ΩBNC
Horizontal Resolution 480TVL
S/N Ratio Better than 50dB
AGC Auto / Manual
Auto Flip Yes
Auto Focus Auto / Manual
BLC ON / OFF
Day & Night ICR
Digital Zoom Up to 12x
IP Rating IP66 standard compatible (Just for outdoor dome), TVS 3000V limited lightning protection
Lens Aperture Range F1.6-F4.5
Lens Field of View 57.8 to 1.7 (WIDE-TELE )
Min. Illumination 1.4Lux / F1.4 (Color) 0.01Lux / F1.4 (B/W)
OSD Menu Yes (English, Chinese)
Pan Range 360 endless
Pan Speed Manual: approx. 0.3 /s-300 /s, Preset: up to approx. 400 /s
Password Protection Preventing unauthorized person modifying the parameter
Privacy Masking Up to 24 zones, while maximum 8 zones masked simultaneously in one image
PTZ Position Display ON / OFF
RS-485 Protocols HIKVISION, PELCO-P, PELCO-D (addible), self-adaptive
Tilt Speed Manual: approx. 0.5 ~90 /s, Preset: up to approx. 150 /s
Tour Mode OFF / Preset / Patrol / Pattern / Auto Scan / Random Scan / Frame Scan
Working Temp/Humidity -30 C ~ 60 C (outdoor) / -10 C ~ 50 C (indoor), 90% or less (without condensation)
Zoom Ratio 3.4-122.4mm, 36x
Zoom Speed Approx. 4.0sec (Optical WIDE-TELE )
White Balance ATW / Manual
Electronic Shutter N: 1/4~1/10,000s
Pan Range 360 endless
Tilt Range 0 ~90 (Auto ip)
Preset 250
Power Supply 24VAC
Power Consumption 30W max (Heater ON)
Weight 11 lbs
