Asus P5B-MX

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x COM port
  • 1 x VGA
  • 1 x Parallel
  • 6 Channel Audio I/O
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Attansic® L1 PCI-E Gigabit LAN controller


• Power Connector :
  • 1 x 24pin main power
  • 1x 4pin CPU power

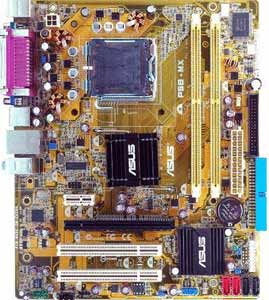

Asus P5B-MX Motherboard

• Model:
  • Asus P5B-MX Motherboard

• Processor Support:
  • Supports Intel ® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium ® D / Pentium ® 4 / Celeron ® D
  • Compatible with Intel ® 05B/05A/06 processors
  • Support Intel® next generation 45nm CP
  • Intel ® Hyper-Threading Technology ready
  • Socket LGA 775


• FSB:
  • 1066 O.C /800/533 Mhz


• Chipset:
  • Intel ® 946GZ

• Memory:
  • 2 x 240-pin DDR2 DIMM socket support up to 4 GB
  • Support Dual Channel DDR2 667/533 Mhz
  • Non-ECC, un-buffered


• Expansion Slots:
  • 1 x PCI Express x16
  • 1 X PCIe 1x
  • 2 x PCI 2.2


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA2 3Gb/s


• Audio:
  • ALC883 6-channel High Definition Audio CODEC
  • Support Jack-Sensing, and Enumeration
  • Coaxial S/PDIF out port onboard


• Video:
  • Intel® Graphics Media Accelerator 3000
  • Max. resolution:2048x1536@75Hz
  • Max. shared memory of 256MB


• BIOS:
  • 4 Mb Flash ROM, AMI BIOS, PnP, DMI, WfM2.0, SM BIOS 2.4, ACPI 2.0a
  • WfM 2.0, DMI, WOL by PME, WOR by PME, PXE, Chassis Intrusion


• Form Factor:
  • uATX Form Factor, 9.6" x 8" (24.5cm x 20.3cm)
