H61M-P31 (W8)

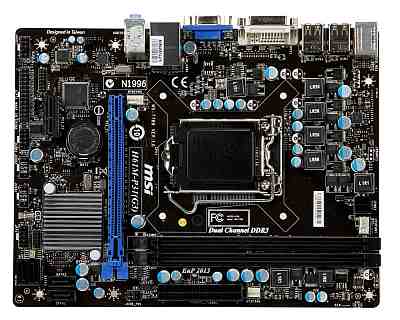

MSI H61M-P31 (W8) Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 Mouse port
  • 1 x PS/2 Keyboard port
  • 6 x USB 2.0 ports
  • 1 x Graphic Card port
  • 1 x DVI-D port
  • 1 x RJ45 LAN Jack
  • 1 x 3 in 1 audio jack
    *VGA, DVI ports can only work with CPUs with GPUs core inside.
• Internal I/O Interface:
  • ATX 24-Pin power connector
  • 4-pin ATX 12V power connector
  • CPU x 1 / System x 2 FAN connectors
  • Front panel audio connector
  • Front panel connector
  • 1 x chasis intrusion connector
  • 2 x USB 2.0 connectors
  • 4 x Serial ATAII connectors
  • 1 x Clear CMOS jumper
  • 1 x Serial port connector
  • 1 x Parallel port connector

Motherboard Specifications

• Model:
  • MSI H61M-P31 (W8) Motherboard

• CPU:
  • 3rd Gen Intel ® Core i7/ Core i5/ Core i3/ Pentium ®/ Celeron ® processors for LGA 1155 socket.
    Please refer to CPU Support for compatible CPU; the above description is for reference only.
• Chipset:
  • Intel ® H61 (B3) Chipset

• FSB:
  • 100MHZ
• Memory:
  • Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333 DRAM, 16GB Max
  • Supports Dual channel mode
• Expansion Slots:
  • 1 PCI Express gen3 x16 slot, supports up to PCIe 3.0 x 16 speed
  • 1 PCI Express gen2 x1 slot
• On-Board Audio:
  • Chipset integrated by Realtek ® ALC887
  • Flexible 8-channel audio with jack sensing
  • Compliant with Azalia 1.0 Spec
  • Meet Microsoft Vista Premium spec
• On-Board Video:
  • VGA Port
  • DVI-D Port
• VGA, DVI ports can only work with CPUs with GPUs core inside.
• On-Board LAN:
  • Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.

• Storage:
  • SATAII controller integrated in Intel ® H61 (B3) chipset
  • Up to 3Gb/s transfer speed.
  • Supports four SATAII ports (SATA1~4) by H61 (B3) PCH
• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

• Mounting:
  • 6 mounting holes.
• Form Factor:
  • 22.6cm(L) x 17.3cm(W) (8.9 Inch x 6.8 Inch)
  • M-ATX Form Factor
