Asus P5B SE

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Parallel
  • 1 x COM port
  • 1 x S/PDIF Out
  • 7.1 Channel audio connectors
  • 4 x USB 2.0/1.1 ports
  • 1 x External SATA
  • 1 x RJ 45 Port


• Power Connector :
  • 1 x 24 pin main power
  • 1 x 4 pin CPU power


• On-Board LAN:
  • PCIe Gb LAN controller


• Form Factor:
  • ATX Form Factor 12"x 7.4" (30.5cm x 18.8cm)

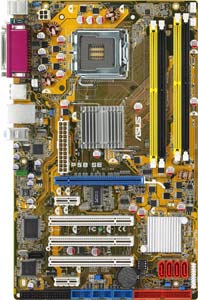

Asus P5B SE Motherboard

• Model:
  • Asus P5B SE Motherboard

• Processor Support:
  • Supports Intel® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron® D
  • Compatible with Intel® 05B/05A/06 processors
  • Support Intel® next generation 45nm Multi-Core CPU
  • Socket LGA 775


• FSB:
  • 1333/1066/800 Mhz 1333 is O.C
  • The chipset officially supports the FSB up to 1066 MHz. Tuned by ASUS exclusive technology, this motherboard natively supports up to FSB 1333 MHz


• Chipset:
  • Intel® P965

• Memory:
  • 4x 240-pin DDR2 DIMM socket support up to 8 GB
  • Support Dual Channel DDR2 800 / 667 / 533 Mhz
  • Non-ECC, un-buffered


• Expansion Slots:
  • 1 x PCIe x16
  • 2 x PCIe x1
  • 3 x PCI 2.2


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 xSATA 3 Gb/s
  • JMicron ® JMB363 PATA and SATA controller
  • 1 x Internal SATA 3Gb/s port
  • 1 x External SATA 3Gb/s port (SATA On-the-Go)
  • Support SATA RAID 0, 1 and JBOD (by 1x External SATA & 1x Internal SATA)


• Audio:
  • ALC662 High Definition Audio 6 -Channel CODEC
  • Coaxial / Optical S/PDIF out ports at back I/O
  • Support Jack-Sensing, Enumeration, Multi-streaming


• BIOS:
  • 8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI v3.0, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
  • WOL by PME, WOR by PME, PXE
