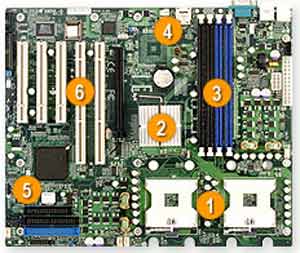

Supermicro X6DVL-G motherboard

• BIOS:
  • 8Mb Flash EEPROM with AMI ® BIOS
  • Plug and Play (PnP)
  • ACPI 1.0
  • APM 1.2
  • DMI 2.3
  • PCI 2.2
  • SMBIOS 2.3
  • BIOS Rescue Hot Keys
  • USB Keyboard Support
  • Hardware BIOS Virus Protection

• Rear Panel I/O Ports:
  • 1x RJ45 LAN port
  • 2x USB rear ports
  • 2x USB internal headers
  • USB 2.0 Compliant / 1.1 Compliant
  • PS/2 keyboard and mouse ports
  • 1 Fast UART 16550 serial ports
  • 1 Fast UART 16550 serial header
  • 1 ECP/EEP parallel port header

• Form Factor:
  • ATX
  • 12" x 10" (30.5cm x 25.4cm)

X6DVL-G Specifications

• Model:
  • Supermicro X6DVL-G

• Processor Support:
  • Dual 604-pin FC-mPGA4 Sockets
  • Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type
  • 800 MHz system bus
  • Supports 64-bit Operating Systems
  • Supports 32-bit Operating Systems

• Chipset:
  • Intel E7530

• FSB:
  • 800MHz

• Memory:
  • Four 184-pin DIMM sockets
  • Supports up to 8 GB DDR 333 MHz memory (or)
  • Supports up to 16 GB DDR 266 MHz memory
  • Dual channel memory bus
  • Memory must be populated in pairs

• Expansion Slots:
  • 1 (x8) signal on a (x16) PCI-e slot
  • 2x 64-bit 66MHz PCI-X (3.3V) slots
  • 3x 32-bit 33MHz PCI (5V) slots

• On-Board LAN:
  • Intel ® 82541GI Single Port Gigabit Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output


• Manageability:
  • Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
  • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.61V
  • Total of six 4-pin fan headers
  • 6x fans with status monitoring
  • Status monitor for on/off control
  • Status monitor for speed control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connector
  • Temperature Monitoring for CPU, chassis, environment
  • CPU thermal trip support
  • CPU / System Overheat LED
  • Suspend-state indicator LED
  • +5V Standby Alert LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC support
