• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x IEEE 1394a
  • 1 x VGA Port
  • 1 x HDMI/DVI port
  • 1 x S/PDIF Out
  • 7.1 Channel audio connectors
  • 6 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Atheros L1 PCI-E Gigabit LAN controllers
  • PCIe Gb LAN controller


• Firewire:
  • VIA VT6308P controller supports 2 x 1394a ports


• Power Connector :
  • 1 x 24pin main power
  • 1 x 4pin CPU power


• Form Factor:
  • uATX Form Factor
  • 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

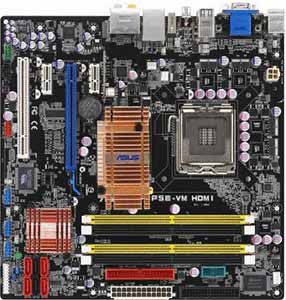

Asus P5E-VM HDMI Motherboard

• Model:
  • Asus P5E-VM HDMI Motherboard

• Processor Support:
  • Supports Intel® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron® D
  • Compatible with Intel® 05B/05A/06 processors
  • Support Intel® next generation 45nm Multi-Core CPU
  • Socket LGA 775


• FSB:
  • 1333/1066/800 Mhz


• Chipset:
  • Intel® G35

• Memory:
  • 4x 240-pin DDR2 DIMM socket support up to 8 GB
  • Support Dual Channel DDR2 1066/800/667 Mhz
  • Non-ECC, un-buffered


• Expansion Slots:
  • 1 x PCI Express x16
  • 2 x PCIe x1
  • 1 x PCI


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 6 x SATA 3Gb/s
  • Intel Matrix Storage Technology Support RAID 0,1,5,10


• Audio:
  • Realtek ALC 883 8 -Channel High-Definition Audio CODEC
  • Coaxial / Optical S/PDIF out ports at back I/O
  • Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking


• Video:
  • Integrated Intel® Graphics Media Accelerator X3500
  • Dual VGA output support: HDMI/DVI-D and RGB
  • Supports RGB with max. resolution 2048 x 1536@75Hz
  • Supports HDMI with max. resolution 1920 x 1200@60Hz
  • Supports DVI with max. resolution 1920 x 1200@60Hz
  • Maximum shared memory of 384 MB
  • Supports Microsoft® DirectX® 10, OpenGL® 2.0, Pixel Shader 4.0


• BIOS:
  • 8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
  • WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
