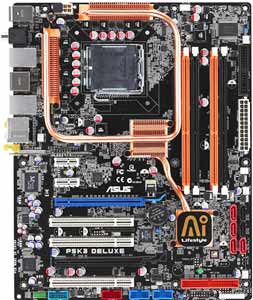

Asus P5K3 Deluxe/WiFi-AP Motherboard
Supports Intel ® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium ® Extreme / Pentium ® D / Pentium ® 4 / Celeron ® D processor in the Socket LGA 775, Intel ® P35 chipset, 2 x PCI Express x16, 2 x PCIe x1, 3 x 32-bit PCI, DDR3, Dual LAN, WI/FI, USB, IDE, SATA2, eSATA, RAID, Firewire, Audio, SPDIF, ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 2 x USB 2.0/1.1 headers
- 1 x IEEE 1394a connector
- 1 x COM connector
- 1 x S/PDIF Out Header
- 6 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 x Optical + 1 x Coaxial S/PDIF Output port
- 2 x External SATA
- 7.1 Channel audio connectors
- 6 x USB 2.0/1.1 ports
- 1 x WiFi-AP Solo antenna jack
- 2 x IEEE 1394a
- 2 x RJ 45 Port
- Power Connector :
- 1 x 24 pin main power
- 2 x 4 pin CPU power
- BIOS:
- 16 Mb Flash ROM, DMI 2.0, AMI BIOS, PnP, WfM 2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
- WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
- Form Factor:
- ATX Form Factor
- 12" x 9.6" 30.5 cm x 24.4 cm
|
Asus P5K3 Deluxe/WiFi-AP Motherboard
- Model:
- Asus P5K3 Deluxe/WiFi-AP Motherboard
- Processor Support:
- Supports Intel ® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium ® Extreme / Pentium ® D / Pentium ® 4 / Celeron ® D
- Compatible with Intel ® 05B/05A/06 processors
- Support Intel ® next generation 45nm Multi-Core CPU
- Socket LGA 775
- FSB:
- Chipset:
- Memory:
- 4x 240-pin DDR3 DIMM socket support up to 8 GB
- Support Dual Channel DDR3 1333/1066/800 Mhz
- Non-ECC, un-buffered
- Expansion Slots:
- 2 x PCIe x16 (blue @ x16 mode, black @ x4 or x1 mode) supports CrossFire Technology
- 2 x PCIe x1
- 3 x PCI 2.2
- Storage:
- 6 x SATA 3.0 Gb/s ports
- Intel ® Matrix Storage Technology with RAID 0, 1, 5, 10 support
- JMicron ® JMB363 PATA and SATA controller
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
- 2 x External SATA 3.0 Gb/s ports
- Supports SATA RAID 0,1 and JBOD
- Audio:
- ADI ® AD2000B 8 -Channel High-Definition Audio CODEC
- Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Coaxial/Optical S/PDIF out ports at back I/O
- ASUS Noise-Filtering
- Firewire:
- Agere® FW322 1394a controller supports 2 x 1394a ports
- On-Board LAN:
- Dual Gigabit LAN controllers, featuring AI NET2Marvell88E8056 ® PCI-E Gigabit LAN controllers
- RealtekRTL8110SC ® PCI Gigabit LAN controller
- Wireless LAN
- 54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b
- Software Access Point mode
- Station mode: Infrastruceure mode and Ad-Hoc mode
|
