Biostar A690G M2+

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x VGA Port
  • 1 x DVI Connector
  • 1 set 5.1 channel Audio Jack (3 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek RTL8101E - 10/100 Controller


• Power Connector :
  • 1 x 24pin main power
  • 1 x 4 pin CPU power

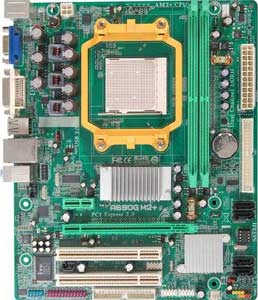

Biostar A690G-M2+ Motherboard

• Model:
  • Biostar A690G-M2+ Motherboard

• Processor Support:
  • Supports AMD Phenom X4, Athlon 64 X2 Dual-Core / Athlon 64 FX / Athlon 64 / Sempron
  • Supports AMD Cool'n'Quiet Technology
  • Socket AM2+


• FSB:
  • 2000 MTS


• Chipset:
  • AMD 690G

• Memory:
  • Support Dual Channel DDR2 400/533/667/800/1066 MHz
  • 2 x DDR2 DIMM Memory Slot
  • Max. Supports up to 4GB Memory


• Expansion Slots:
  • 1 x PCIe x16
  • 1 x PCIe x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA2 3Gb/s
  • Support RAID: 0,1, 10


• Audio:
  • Realtek ALC662 6-Channel HD Audio
  • 2/4/5.1
  • Compliant with HD specification


• Video:
  • ATI Radeon X1250 Graphics, On Board Graphic
  • Max. Memory Share Up to 512MB


• BIOS:
  • Award BIOS with 4Mb Flash ROM
  • Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 1.0 specification


• Form Factor:
  • Micro-ATX Form Factor, 20cm X 24.4cm
