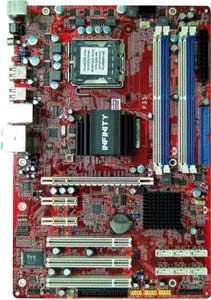

DFI BLOOD IRON P35-T2R/L Motherboard
Supports Intel ® Core Quad, Intel ® Core Extreme, Intel ® Core Duo, Intel ® Pentium ® D or Intel ® Pentium ® 4 processor in the Socket LGA 775, Intel ® P35 Express chipset, 1 x PCIe x16, 2 x PCIe x1, 3 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Audio, SPDIF, ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 3 x USB 2.0/1.1 headers
- 1 S/PDIF connector (on the Bernstein audio module)
- 1 connector for the Bernstein audio module
- 1 connector for 1 external IEEE 1394 port
- 1 connector for an external COM port
- 6 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 mini-DIN-6 PS/2 mouse port
- 1 mini-DIN-6 PS/2 keyboard port
- 1 optical S/PDIF-out port
- 1 coaxial RCA S/PDIF-out port
- 6 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- Other Features :
- ACPI and OS Directed Power Management
- ACPI STR (Suspend to RAM) function
- Wake-On-PS/2 / Wake-On-USB Keyboard/Mouse
- Wake-On-LAN and Wake-On-Ring
- RTC timer to power-on the system
- AC power failure recovery
- Monitors CPU/system/chipset temperature
- Monitors 12V /5V/ 3.3V/ Vcore/ Vbat/ 5Vsb/ Vdimm/ Vchip voltages
- Monitors the speed of the cooling fans
- CPU Overheat Protection function monitors CPU temperature during system boot-up
- Form Factor:
- ATX form factor
- 24.4cm x 30.5cm
|
DFI BLOOD IRON P35-T2R/L Motherboard
- Model:
- DFI BLOOD IRON P35-T2R/L Motherboard
- Processor Support:
- Supports
Support Intel Core 2 Quad/ Core 2 Extreme/ Core 2 Duo/ Pentium D/ Pentium 4 Processor
- Supports Intel Enhanced Memory 64 Technology (EMT64T)
- Supports Enhanced Intel SpeedStep Technology (EIST)
- Supports Intel Hyper-Threading Technology
- Socket LGA 775
- FSB:
- Chipset:
- Memory:
- Four 240-pin DDR2 DIMM sockets
- Supports DDR2 667 and DDR2 800 DIMMs
- Delivers up to 12.8Gb/s bandwidth
- Supports dual channel (128-bit wide) memory interface
- Supports unbuffered non-ECC x8 and x16 DIMMs
- Supports up to 8GB system memory
- Expansion Slots:
- 1 x PCI Express
- 2 x PCIe x1
- 3 x PCI 32bit/33MHz slots
- Storage:
- Intel ICH9R chip
- Supports up to 6 SATA devices - SATA speed up to 3Gb/s
- RAID 0, RAID 1, RAID 0+1 and RAID 5
- JMicron JMB368 PCI Express to PATA host controller
- Supports up to 2 UltraDMA 100Mbps IDE devices
- On-Board LAN:
- Marvell 88E8053 PCIE Gigabit LAN controllers
- Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards
- Audio:
- Realtek ALC885 High Definition audio CODEC
- 8-channel audio output
- DAC SNR/ADC SNR of 106dB/101dB
- Optical S/PDIF-out and coaxial RCA S/PDIF-out interfaces
- Full-rate lossless content protection technology
- BIOS:
- Award BIOS
- CMOS Reloaded
- CPU/DRAM overclocking
- CPU/DRAM/Chipset overvoltage
- 8Mbit flash memory
|
