• Internal I/O Interface:
  • 3 connectors for 6 additional external USB 2.0/1.1 ports
  • 1 connector for 1 external IEEE 1394 port
  • 1 front audio connector for external line-out and mic-in jacks
  • 1 CD-in internal audio connector
  • 1 S/PDIF connector for optical cable connection
  • 1 IrDA connector
  • 6 Serial ATA connectors
  • 1 IDE connector
  • 1 floppy connector
  • 1 24-pin ATX power connector
  • 1 8-pin ATX 12V power connector
  • 1 4-pin 5V/12V power connector (FDD type)
  • 1 front panel connector
  • 5 fan connectors
  • EZ touch switches (power switch and reset switch)

• BIOS:
  • Award BIOS
  • 4Mbit flash memory

• Hardware Monitoring:
  • Monitors CPU / system / northbridge temperature and overheat alarm
  • Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vdimm/Vchip voltages
  • Monitors the speed of the cooling fans
  • CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shutdown upon system overheat

• Manageability:
  • ACPI and OS Directed Power Management
  • ACPI STR (Suspend to RAM) function
  • Wake-On-PS/2 Keyboard/Mouse
  • Wake-On-USB Keyboard/Mouse
  • Wake-On-LAN
  • RTC timer to power-on the system

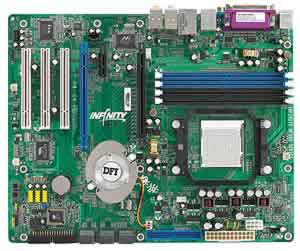

Motherboard Specifications

• Model:
  • DFI INFINITY NF570-M2/GG

• Processor Support:
  • AMD Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Sempron
  • Socket AM2

• Chipset:
  • NVIDIA nForce 570

• FSB:
  • 2000MT/s HyperTransport interface

• Memory:
  • Four 240-pin DDR2 DIMM sockets
  • Supports DDR2 533 and DDR2 667 DIMMs
  • Supports dual channel (128-bit wide) memory interface
  • Supports up to 4GB system memory

• Expansion Slots:
  • 2 PCI Express x16 slots
  • 1 PCI Express x1 slot
  • 3 PCI slots

• On-Board Audio:
  • Realtek ALC882 High Definition audio CODEC
  • 8-channel audio output
  • S/PDIF interface

• On-Board LAN:
  • NVIDIA ® chip integrated with Gigabit MAC (Media Access Control) technology
  • Marvell 88E1115 Gigabit Phy
  • Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards

• Storage:
  • Supports one IDE connector that allows connecting up to two UltraDMA 133Mbps hard drives
  • Six SATA speed up to 3Gb/s
  • RAID 0, RAID 1, RAID 0+1 and RAID 5

• Rear Panel I/O Ports:
  • 1 mini-DIN-6 PS/2 mouse port
  • 1 mini-DIN-6 PS/2 keyboard port
  • 1 optical S/PDIF-out
  • 1 RCA S/PDIF-out
  • 1 parallel port
  • 1 COM port
  • 1 IEEE 1394 port
  • 1 RJ45 LAN port
  • 4 USB 2.0/1.1 ports
  • Line-in, line-out (front R/L) and mic-in jacks
  • Center/subwoofer, rear R/L and side R/L jacks

• Form Factor:
  • ATX form factor
  • 22cm (8.66") x 30.5cm (12")
