RD480 Neo2-FI Socket 939 for AMD Athlon 64/64 FX processor ATI Radeon RD480 chipset 3 DDR 2 PCI Express 16x 2 PCI On-board Audio LAN USB Firewire SPDIF. ATX form factor.

RD480 Neo2-FI Socket 939 for AMD Athlon 64/64 FX processor ATI Radeon RD480 chipset 3 DDR 2 PCI Express 16x 2 PCI On-board Audio LAN USB Firewire SPDIF. ATX form factor.

Part #: 108608
Condition: New- Retail Box
Warranty: 365 days
Brand: Microstar / MSI
| Log in to add review
Rate this product:

Updating Variation

Please wait while we update product details...

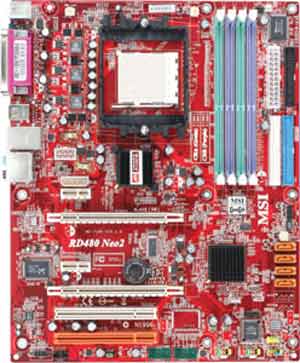

MSI RD480 Neo2-FI Motherboard

Socket 939 for AMD Athlon 64/64 FX processor, ATI Radeon RD480 chipset, 3 DDR, 2 PCI Express 16x, 2 PCI, On-board Audio, LAN, USB, Firewire, SPDIF. ATX form factor.



Socket 939 for AMD Athlon 64/64 FX processor, ATI Radeon RD480 chipset, 3 DDR, 2 PCI Express 16x, 2 PCI, On-board Audio, LAN, USB, Firewire, SPDIF. ATX form factor.

  • Internal I/O Interface:
    • 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
    • 1 serial ports
    • 1 parallel port supports SPP/EPP/ECP mode
    • 8 USB 2.0 ports (Rear x 4 / Front x 4)
    • 1 Audio (Line Out x 3, Line In, Mic In, SPDIF out (Coaxial/Fibre) port
    • 1 RJ-45 jack
    • 2 IDE ports support 4 IDE devices
    • 4 SATAII ports, 2 SATAII ports (optional)
    • 3 IEEE1394a ports (rear x 1, front x 2)

  • Storage:
    • An IDE controller on the ATI SB450 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes, 4X ultra DMA 100/66/33
    • Can connect up to 4 IDE devices
  • BIOS:
    • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
    • The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications
  • Form Factor:
    • 12 in.(L) x 9.64 in.(W)
    • ATX Form Factor



MSI RD480 Neo2-FI Specifications

  • Model:
    • MSI RD480 Neo2-FI
  • Processor Support:
    • Supports 64-bit AMD ® Athlon64/64FX processor (Socket 939)
    • Supports 3000+, 3200+, 3400+, 3500+, 3800+, 4000+, 4400+, 4600+, 4800+, FX53, FX55, FX57, FX60

  • Chipset:
    • ATI Radeon ® RD480Chipset
    • ULI ® M1573Chipset
  • Memory:
    • Supports 4 184-pin DDR SDRAMs up to 4GB memory size
    • Supports Dual Channel DDR400*/DDR333 DDR SDRAM (*Refer to MSI recommended modules)
    • Support for 2Mx32 (with 64-bit interface), 4Mx32, 8Mx32 and 16Mx16 memory devices

  • Expansion Slots:
    • Two PCI Express x16, support ATI mvp Technology (Support PCI Express Bus Specification v1.0a compliant)
    • Supports two 32-bit Master 3.3v/5v PCI Bus slots

  • On-Board Audio:
    • 8 Channel software audio codec Realtek ALC882
    • Compliance with Azalia v1.0 Spec.
    • Meet PC2001 audio performance requirement

  • On-Board LAN:
    • Marvell PCI-E Gb LAN controller 88E8053
    • Integrated Fast Ethernet MAC and PHY in single chip
    • Supports 10Mb/s, 100Mb/s, 1000Mb/s
    • Compliance with PCI-Express Bus specification v1.0a
