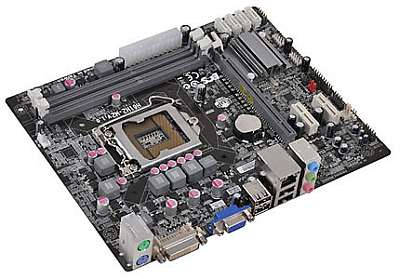

ECS H61H2-M2 (V2.0) Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard & PS/2 mouse connectors
  • 1 x D-sub(VGA)
  • 1 x HDMI Port(Optional)
  • 1 x DVI Port
  • 1 x RJ45 LAN connector
  • 1 x Audio port (1x Line in, 4x Line out, 1x Optical SPDIF Out)
  • 4 x USB 2.0 Ports
• Internal I/O Interface:
  • 1 x 24-pin ATX Power Supply connector
  • 1 x 4-pin 12V Power connector
  • 1 x 4-pin CPU_FAN connector
  • 1 x 3-pin SYS_FAN connector
  • 1 x Speaker header
  • 1 x Front panel switch/LED header
  • 1 x Front panel audio header
  • 1 x S/PDIF out header
  • 1 x CLR COMS
  • 1 x Serial Header(COM)
  • 4 x SATA 3Gb/s connectors
  • 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
  • 1 x TPM header
  • 1 x Chassis intrusion header
• On-Board LAN:
  • Atheros AR8151 10/100/1000 Fast Ethernet Controller (optional Atheros AR8152 10/100 LAN)
  • Supports Wake-On-LAN
  • Provides ultra low power consumption
• Storage:
  • Support by Intel ® H61
    4 x Serial ATA 3.0Gb/s devices
  • Supports NCQ, AHCI and "Hot Plug" functions
• Expansion Slots:
  • 1 x PCI Express x16 Gen3.0 slot
  • 2 x PCI Express x1 slots
    PCIe Gen3 is supported by Intel 3rd CPU
• OS Support:
  • Windows XP 32/64bit
  • Windows Vista 32/64bit
  • Windows 7 32/64bit
  • Windows 8 32/64bit
• Bundled Software:
  • ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF
  • Free Bundle: Norton Internet Security ,CyberLink Media Suite, Muzee with trial version

Motherboard Specifications

• Model:
  • ECS H61H2-M2 (V2.0) Motherboard

• CPU:
  • LGA1155 socket for new 2nd & 3rd Generation Intel ® Core Family/ Pentium/ Celeron Processors
  • Supports Intel ® 32nm CPUs
  • Supports Intel ® 22nm CPU
  • Supports Intel ® Unlock Processors
  • 5 Phase Power Design with VRD 12.0 Compliant for improved energy efficiency
  • Supports Intel ® Turbo boost 2.0 technology
  • Applied Solid Capacitor for CPU side
  • DMI 5.0GT/s
  • Supports Hyper-Threading Technology CPU
    *Note: Please refer to CPU support list for details
  • Intel ® Secure Key (Intel 3rd gen CPU i5 or above)
  • Intel ® OS Guard (Windows 8)
  • AES New Instructions (AES-NI) (Intel 3rd gen CPU i5 or above)
• SYSTEM BIOS:
  • AMI BIOS with 64Mb SPI Flash ROM
  • Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
  • Supports Multi-language BIOS
  • Support GUI UEFI BIOS
  • Supports eBLU
  • Supports eDLU
  • Support eOC
  • Supports ECS M.I.B III Utility
  • Supports ACPI 3.0 & DMI
  • F7 hot key for boot up devices option
  • Audio, LAN, can be disabled in BIOS
  • Supports Page Up clear CMOS Hotkey
• Chipset:
  • Intel ® H61 Express Chipset
  • Intel ® Identity Protection Technology
  • Supports dual stream HDMI & DP audio
• Memory:
  • Dual-channel DDR3 memory architecture
  • 2 x 240-pin DDR3 DIMM socket support up to 16 GB*
  • Supports DDR3 1066/1333/1600(with Ivy Bridge)SDRAM
  • Supports for non-ECC memory modules
  • Supports Intel ® Extreme Memory Profile (XMP)
    *(Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 8GB)
    Note: Please go to ECS website for the latest Memory support list.
    Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows?32-bit OS.
    For Windows?64-bit OS with 64-bit CPU, there is no such limitation
• On-Board Audio:
  • VIA ® VT1705 6-channel High Definition audio CODEC
  • Compliant with HD audio specification for a whole new immersive surround sound experience
  • 3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
  • Low Power Consumption
  • Capability for œfull rate BluRay / DVD / HD DVD support.
• On-Board Video:
  • Supports DirectX ® 11 for accelerated Blu-Ray 3D and DivX decoding
  • Intel HD Graphics 2000/3000(Intel 2nd gen CPU) & 2500/4000(Intel 3rd gen CPU)
  • Supports Intel ® Quick Sync Video 2.0 (Intel 3rd gen CPU), Advanced Vector Extensions, Clear Video HD Technology, InTru 3D
  • Supports HDMI 1.4a & Premium Audio
  • Integrated DirectX 11 graphics processor
  • Supports OpenGL 3.1(Intel 3rd gen CPU)
  • Supports OpenCL 1.1(Intel 3rd gen CPU)
  • Supports Switchable Graphics
  • Integrated DP with up to 2560x1600 resolution
  • Supports Full HD 1080P Blu-ray / HD-DVD Playback
  • 1 x D-sub(VGA)
  • 1 x HDMI Port(Optional)
  • 1 x DVI Port

• Form Factor:
  • Micro-ATX
  • Size, 225mm*180mm (8.6 Inch x 7.1 Inch)
