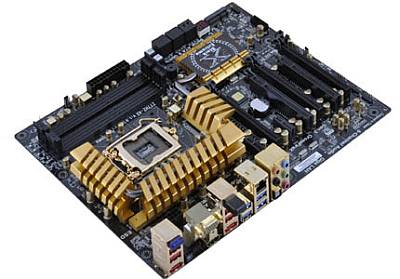

ECS Z77H2-AX (V1.0) Motherboard

• Rear Panel I/O Ports:
  • 4 x USB 3.0 ports
  • 4 x USB 2.0 Ports
  • 1 x D-sub(VGA)
  • 1 x HDMI Port
  • 1 x RJ45 LAN connector
  • 1 x Audio port (1x Line in, 4x Line out, 1x Optical SPDIF Out)
  • 1 x Clear_CMOS button
  • 1 x wifi connector
  • 1 x Bluetooth
  • 2 x eSATA 6.0Gb/s ports
  • 1 x HDMI
• Internal I/O Interface:
  • 1 x 24-pin ATX Power Supply connector
  • 1 x 8-pin ATX Power Supply Connector
  • 1 x 4-pin CPU_FAN connector
  • 1 x 3-pin SYS_FAN connector
  • 1 x 3-pin PWR_FAN connector
  • 1 x USB 2.0 header support additional 2 USB ports with EZ charger technology
  • 1 x USB 3.0 header supports additional 2 USB 3.0 Ports (support by TI TUSB7320)
  • 2 x SATA 3Gb/s connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x COM header
  • 1 x Case Open header
  • 1 x SPDIF out header
  • 1 x Front panel switch/LED header
  • 1 x Front panel audio header
  • 1 x debug post LED
  • 1 x Power on button
  • 1 x Reset button
  • 1 x mSATA
• On-Board LAN:
  • RealTek RTL 8111E Gigabit Lan

Motherboard Specifications

• Model:
  • ECS Z77H2-AX (V1.0) Motherboard

• CPU:
  • LGA1155 socket for new 2nd & 3rd Generation Intel ® Core Family/ Pentium ® /Celeron ® Processors
  • DMI 5.0GT/s
• SYSTEM BIOS:
  • AMI BIOS with 64Mb SPI Flash ROM
  • Support ECS M.I.B X Utility
  • Supports eBLU
  • Support eOC
  • Supports eDLU
  • Supports eSF
• Chipset:
  • Intel ® Z77 Express Chipset
• Memory:
  • Dual-channel DDR3 memory architecture
  • 4 x 240-pin DDR3 DIMM socket support up to 32 GB
  • Support DDR3 up to 2800(OC)/2600(OC)/2400(OC)/2133(OC)/1800(OC)/1600 DDR3 SDRAM
    Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows?32-bit OS.
    For Windows?64-bit OS with 64-bit CPU, there is no such limitation
• Expansion Slots:
  • 3 x PCI Express x16 Gen3.0 slots (2X16 1X8, 2X16 support by PLX8747)
  • 2 x PCI Express x1 slots
  • 2 x PCI slots
  • 1 x Mini PCI Express x1 slot
    Supports Mini SATA
    Supports Mini PCI Express
• On-Board Audio:
  • Realtek ALC892 8-Ch High Definition audio CODEC
  • Compliant with HD audio specification
• On-Board Video:
  • VGA Port
  • HDMI Port
• Storage:
  • Support by Intel ® Z77
    2 x Serial ATA 3.0Gb/s devices (SATA2 3/4)
    2 x Serial ATA 6.0Gb/s devices (SATA3 1/2)
    RAID0, RAID1, RAID5, RAID 10 configuration
  • Support by ASMEDIA ASM1061
    2 x Serial ATA 6.0Gb/s devices (SATA3 5/ 6)
    2 x eSATA 6.0 Gb/s ports
• Form Factor:
  • ATX Size,
  • 305mm*244mm (12 Inch x 9.6 Inch)
