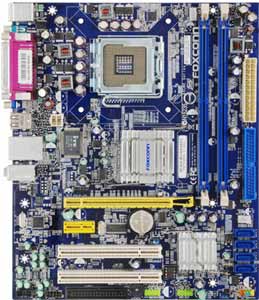

Foxconn 45CMX Motherboard
Supports Intel® Core2 Extreme, Core2 Duo,Pentium® D, Pentium® 4 and Celeron® D processors in the LGA 775 package, Intel® 945GC chipset, 1 x PCIe x16, 1 x PCIe x1, 2 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, Video, Audio, SPDIF, Micro-ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 2 x USB 2.0/1.1 headers
- 1 x COM2
- 1 x S/PDIF out header
- 4 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x D-Sub port
- 1 x parallel port
- 1 x serial port
- 1 set 5.1 channel Audio Jack (3 jacks)
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- Management:
- STR (Suspend-to-RAM)
- STD (Suspend-to-Disk)
- SuperSpeed, SuperBoot
- SuperBIOS-Protect
- SuperRecovery
- SuperStep, SuperLogo
- SuperUpdate
|
Foxconn 45CMX Motherboard
- Model:
- Foxconn 45CMX Motherboard
- Processor Support:
- Supports Intel® Core2 Extreme, Core2 Duo, Pentium® D, Pentium® 4 and Celeron® D processors
- Socket LGA 775
- FSB:
- Chipset:
- Memory:
- Two DDR2 DIMM memory slots (supports up to 2GB memory)
- Supports 240 pins DDR2 DIMM 1.8 V
- Supports DDR2 400/533/667 DIMM
- Expansion Slots:
- 1 x PCIe x16
- 1 x PCIe x1
- 2 x PCI 32bit/33MHz slots
- Storage:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 4 x SATA2 ports 300
- Audio:
- 5.1 HD audio with Realtek ALC662
- 2/4/5.1
- Support for CD In
- Video:
- Intel® GMA 950 Graphics Controller
- On-Board LAN:
- 10/100M LAN, Realtek® RTL8101E
- BIOS:
- AWARD BIOS
- 1 x 4 Mbit flash
- PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
- Form Factor:
- Micro-ATX Form Factor
- 9.6 x 8.0 inch
|
