Intel DH61HO

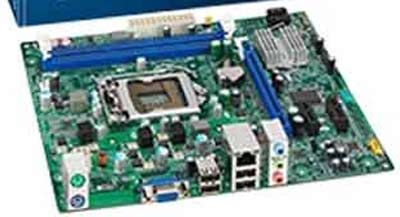

Intel DH61HO Motherboard

• Storage:
  • 2 SATA


• Rear Panel I/O Ports:
  • Eight USB 2.0 ports (4 external ports, 4 via internal headers)
  • Two Serial ATA ports
  • Two PS/2 ports
  • One Serial Header
  • Serial Port via Internal Header: YES
  • # of PS2 Ports: 2


• BIOS:
  • ID String: HOH6111H.86A

Motherboard Specifications

• Model:
  • Intel DH61HO Motherboard


• Processor Support:
  • Intel ® Core i7 processor series in an LGA1155 socket with a 65W TDP
  • Intel ® Core i5 processor series in an LGA1155 socket with a 65W TDP
  • Intel ® Core i3 processor series in an LGA1155 socket
  • Max TDP: 65W


• Chipset:

  • Intel ® H61 Express Chipset

• Memory:
  • Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 1333 /1066 MHz DIMMs
  • Support for up to 16 GB1  o system memory
  • Memory Chanels: 2


• Expansion Slots:
  • One PCI Express* 3.0 x16 bus add-in card connectors
  • Two PCI Express* x1 connectors

• On-Board Video:
  • VGA connector for processors with Intel ® HD Graphics
  • Graphics Output: VGA


• On-Board Audio:
  • 6-channel audio subsystem with three analog audio outputs.

• On-Board LAN:
  • Gigabit Ethernet controller

• Form Factor/Dimensions:
  • Micro-ATX
  • 9.6" x 9.6"
