Foxconn 945G7MA-8EKRS2

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x D-Sub port
  • 1 x parallel port
  • 1 x serial port
  • 1 x IEEE 1394a
  • 1 set 7.1 channel audio jacks (6 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Firewire:
  • 1 x 6-pin in rear I/O area + 1 front via internal header


• Management:
  • STR (Suspend-to-RAM)
  • STD (Suspend-to-Disk)
  • SuperSpeed, SuperBoot
  • SuperBIOS-Protect
  • SuperRecovery, SuperUpdate
  • SuperStep, SuperLogo

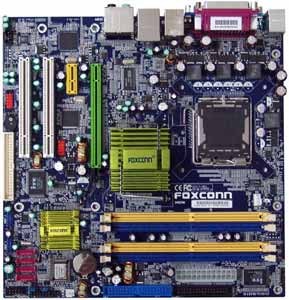

Foxconn 945G7MA-8EKRS2 Motherboard

• Model:
  • Foxconn 945G7MA-8EKRS2 Motherboard

• Processor Support:
  • Supports Intel® Core2 Extreme, Core2 Duo, Pentium® D, Pentium® 4 and Celeron® D processors
  • Socket LGA 775


• FSB:
  • 1066/800/533 MHz


• Chipset:
  • Intel® 945G

• Memory:
  • Four DDR2 DIMM memory slots (supports up to 4GB memory)
  • Supports 240 pins DDR2 DIMM 1.8 V
  • Supports DDR2 400/533/667 DIMM


• Expansion Slots:
  • 1 x PCIe x16
  • 1 x PCIe x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x ATA/100 + 1 x ATA/133 (w/ RAID)
  • 4 x SATA2 ports 300
  • Supports RAID 0, 1, 5, 10, and Intel Matrix Storage Technology (1+0 on 2 HDDs)


• Audio:
  • 7.1 channel, high definition, Azalia (Realtek ALC880)
  • 2/4/5.1/7.1
  • Support for CD In


• Video:
  • Supports integrated VGA display functions (Graphics Media Accelerator 950)


• On-Board LAN:
  • Integrated Gigabit Ethernet (10/100/1000) controller (Broadcom)


• BIOS:
  • AWARD BIOS
  • 1 x 4 Mbit flash
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b


• Form Factor:
  • Micro-ATX Form Factor
  • 9.6 x 9.6 inch
