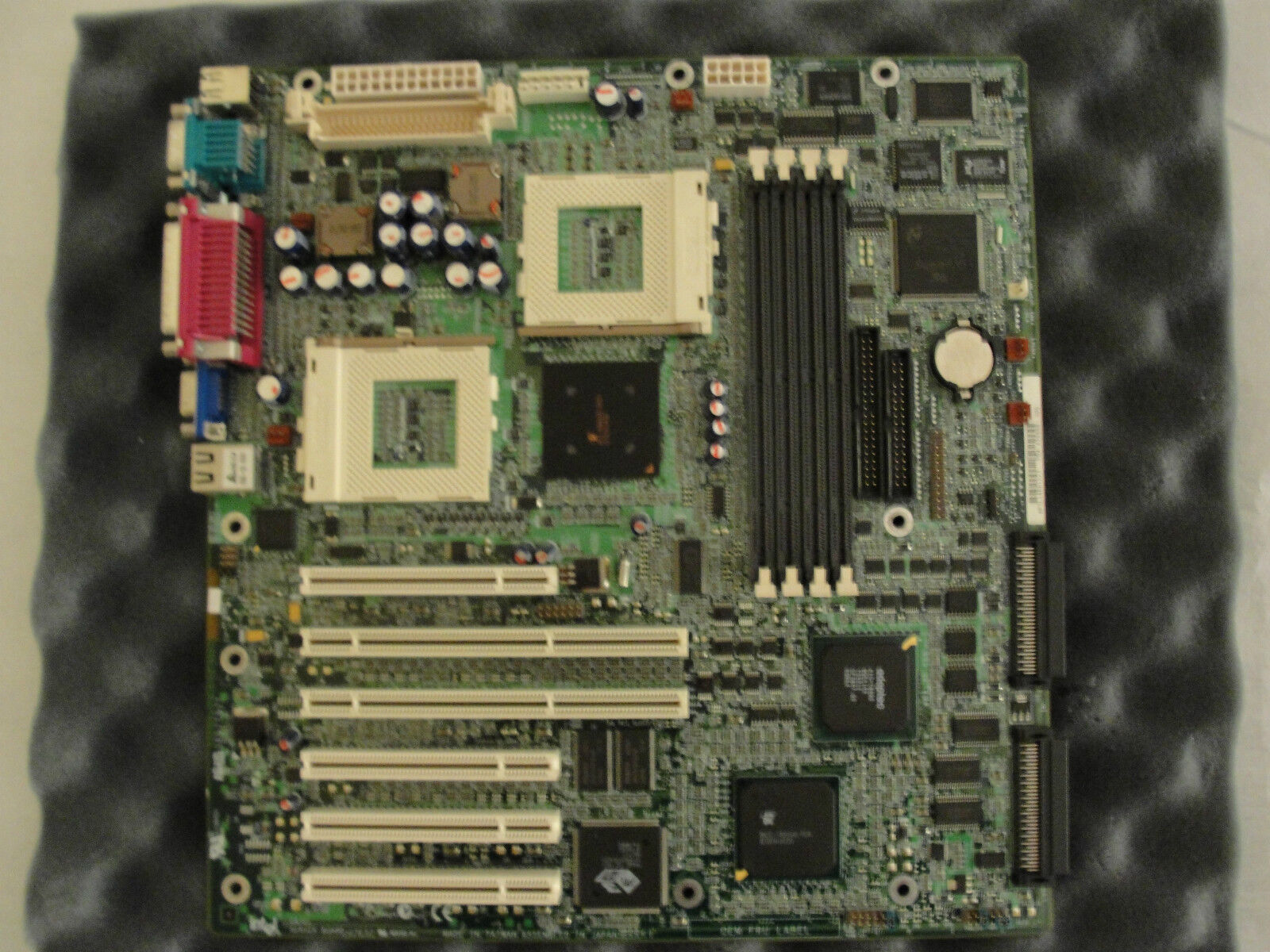

Motherboard Image

Motherboard Specifications

• MOTHERBOARD MODEL: STL2
• CPU SUPPORT: Support for two Intel ^® Pentium ^® III processors.
• CHIPSET:
  Serverworks Serverset* III LE
• SYSTEM MEMORY:
  Four DIMM sockets for up to 4 GB of SDRAM
  PC/133 Registered SDRAM 72-bit ECC, 168-pin
• I/O:
  Six total PCI Slots: two 64-bit/66MHz, four 32-bit/33MHz One EIDE channel for a total of two IDE devicesTwo stacked USB connectors

• BIOS:
  4 Mb Flash EEPROM with Phoenix* BIOS, Multi-boot BBS (BIOS Boot Specification) 1.4-compliant
  Plug and Play, IDE drive auto-configure, SMBios 2.3, ECC/Parity support, multilingual support
• DIMENSIONS:
  ATX Form Factor: 12.0" X 11.5"

• SCSI CONTROLLER SPECS:
  Adaptec AIC7899 Dual Channel-one Ultra160/LVD channel, one Ultra Wide channel. Two 68-pin "wide" SCSI connectors. Max data transfer: 160 MB/sec on Ultra160/LVD channel
• NETWORK CONTROLLER SPECS:
  One Intel ^® PRO/100+ Fast Ethernet Controller (Intel ^® 82559) Supports 10BASE-T and 100BASE-TX, RJ45 output
