• BIOS:
  • AMI ® BIOS 8.0 on 4Mbit Flash ROM
  • LAN remote boot (PXE) and SMBIOS v2.3
  • BIOS Boot Specification v3.1 (BBS) support
  • Auto configuration of IDE hard drive types


• Hardware Monitoring:
  • Total of seven 3-pin fan headers
  • Six fan headers with tachometer monitoring
  • One 2-pin chassis intrusion header
  • Temperature, voltage, and fan monitoring
  • Watchdog timer
• Rear Panel I/O Ports:
  • ATX12V/EPS12V universal power connector
  • Serial (one) and VGA (one) connector
  • Stacked USB (two) connectors
  • Side-by-side RJ-45 LAN (two) connectors
  • Stacked PS/2, keyboard, and mouse connectors


• Internal I/O Interface:
  • One floppy connector supports up to two drives
  • Two 9-pin serial port (one connector and one header)
  • One 25-pin ECP/EPP/SPP parallel header
  • Four USB 1.1 ports (two rear, two via header)
  • PS/2 keyboard and mouse connecto

• Miscellaneous:
  • FCC Class B (Declaration of Conformity)
  • European Community CE
  • 1x Tiger i7501X (S3022) motherboard
  • User's Manual, Quick Reference.
  • 2x CPU retention modules
  • 2x CPU Back-plates with screws
  • 1x 34-pin floppy drive cable
  • 1x Ultra-DMA-100/66/33 IDE cable
  • 1x Ultra320 SCSI cable
  • 1x TYAN driver CDs; 1x LSI SCSI driver diskette
  • 1x I/O shield

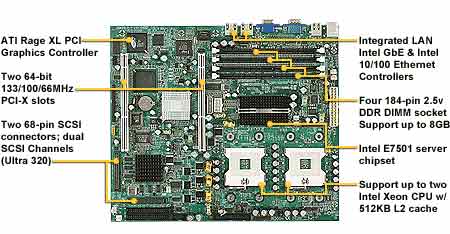

Motherboard Specifications

• Model:
  • Tyan Tiger i7501X S3022UGNN


• Processor:
  • Dual mPGA604 ZIF sockets
  • Supports up to two Intel ® Xeon processors with 512KB of integrated L2 cache
  • Onboard 4-phase VRM (VRM 9.1 spec)


• FSB (Front Side Bus):
  • Front-Side Bus support for 533/400MHz


• Chipset:
  • Intel ® E7501 server chipset
  • MCH + ICH3 + P64H2 + FWH
  • Intel ® P64H2 supports two PCI(-X) buses
  • Winbond W83627HF Super I/O chip
  • Winbond W83782D hardware monitoring chip


• Memory:
  • Four 184-pin 2.5V DDR DIMM sockets (optional two angle DIMMs for 1U Rackmount chassis - DIMM 2 and 4)
  • Supports up to 8GB of Registered DDR266/200
  • Dual channel memory bus
  • Supports Registered memory only
  • Supports ECC type memory modules


• Expansion Slots:
  • Two 64-bit 133/100/66MHz (3.3V) PCI-X slots
  • Total of two usable slots


• IDE Controllers:
  • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices
  • Support for UDMA-100/66/33 IDE drives and ATAPI-compliant devices


• SCSI Dual Channel:
  • LSI LS53C1030 SCSI controller
  • Dual-channel Ultra320 SCSI
  • Two 68-pin SCSI connectors
  • Supports Zero-channel RAID (LSI Logic MegaRAID ® SCSI 320-0 ZCR) - card not included


• Lan:
  • Intel ® 82545EM Gigabit Ethernet controller
  • One RJ-45 LAN connector with LEDs
  • Connected to a PCI-X bus
  • Intel ® 82551QM 10M/100M Ethernet controller
  • One RJ-45 LAN connector with LEDs


• Video:
  • ATI ® Rage XL PCI graphics controller
  • 8MB Frame Buffer of video memory


• Form Factor:
  • ATX footprint (12" x 10.25")
