Microstar K7T Turbo Motherboard MS-6330 socket A motherboard

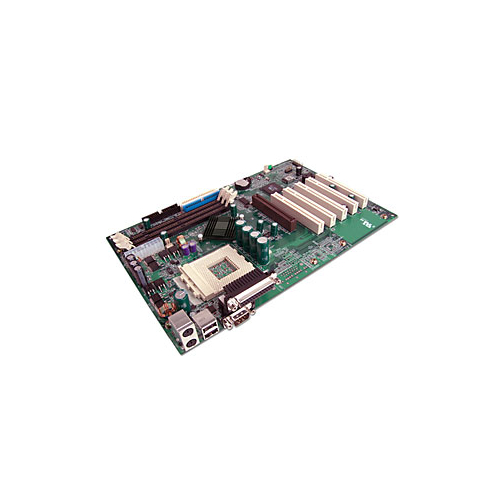

Motherboard Image
Motherboard Specifications
MOTHERBOARD MODEL : Microstar K7T Turbo MS-6330 version 2.1 CPU SUPPORT : AMD Athlon up to 1.4 GHz with "A" prefix on CPU AMD Duron up to 1000 MHz with "D" prefix on CPU CHIPSET : VIA KT133A Chipset VIA VC82C686B Chipset FSB 200/266MHz FSB SYSTEM MEMORY : 3 X 168-pin DIMM sockets for 3.3v SDR-SDRAM Maximum: 1.5GB EXPANSIONS SLOTS :1 AGP slot 5 PCI slots ON BOARD IDE :An IDE controller on the VIA VT82C686B chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. I/O INTERFACE: 1 Serial port 1 Parallel port supports SPP/EPP/ECP mode. 4 USB ports. (2 rear connectors/2 front pin headers) Note DIMENSIONS :ATX Form Factor. 12" x 8" BIOS: AMI BIOS Plug & Play Flash BIOS Desktop Management Interface(DMI) function
