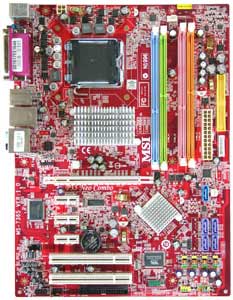

MSI P35 Neo Combo-F Motherboard
Supports Socket 775 for Intel Core2 Quad, Core2 Extreme, Core2 Duo, Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE/Celeron D processors in LGA 775 package, Intel ® P35 chipset, 1 PCI-E 16x, 3 PCI-X 1X, 2 PCI, DDR2 & DDR3, LAN, USB, IDE, SATA2, Audio, ATX Form Factor |
|
- Internal I/O Interface:
- 8 x USB 2.0 connector (12 Total )
- 1 x Floppy disk drive connector
- 1 Serial port (COM A, Pin-Out)
- 1 parallel port supports SPP/EPP/ECP mode (Supported by pin-out, JLPT1)
- 5x SATA connectors
- 1 IDE ports support 2 IDE devices
- Rear Panel I/O Ports:
- 1 x PS/2 keyboard
- 1 x PS/2 Mouse
- 4 x USB 2.0 Ports
- 1 x RJ 45 Port
- 1 6-in-1 audio jack (S/SPDIF out)
- Audio:
- High Definition link controller integrated in Intel ICH9 chip
- 8 channels audio codec Realtek 888
- Flexible 8 Ch. audio with jack sensing
- Compliance with Azalia 1.0 spec
- On-Board LAN:
- Realtek RTL8111B PCI-Express Gb LAN Controller
- Support 10/100/1000 Mb/s
- Form Factor:
- ATX Form Factor
- 12in.(L) x 9in.(W)
|
MSI
P35 Neo Combo-F
Motherboard
- Model:
- MSI
P35 Neo Combo-F
Motherboard
- Processor Support:
- Supports Socket 775 for Intel Core2 Quad, Core2 Extreme, Core2 Duo, Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE/Celeron D processors in LGA 775 package
- Supoprts Intel 05B/05A and 04B/04A processors
- Supports Intel Hyper-Threading technology
- Supports EIST techonology
- Supports Intel Quad Core Technology to 1333MHz and up
- FSB:
- Chipset:
- Memory:
- Supports 2 unbuffered DIMM of 1.8 Volt DDR2 or 2 unbuffered DIMM of 1.5 Volt DDR3 SDRAM
- Supports up to 4GB memory size
- Support Dual Channel DDR2 667/800MHz and up (Intel P35 chipset supports up to DDR2-800 officially. For DDR2 800+, manually BIOS adjustment is needed)
- Support Dual Channel DDR3 800/1066MHz and up (Intel P35 chipset supports up to DDR3-1066 officially. For DDR3 1066+, manually BIOS adjustment is needed)
- Expansion Slots:
- One PCI Express X 16 slot
- Three PCI Express X 1 slot
- Two PCI slots (support 3.3v/5v PCI bus interface).
- Storage:
- One Ultra DMA 133 IDE port by Marvell 88SE6111
- Supports PIO, Bus Master operation modes
- Can connect up to 2 Ultra ATA drives
- Serial ATAII controller integrated in ICH9 and Marvell 88SE6111
- Transfer rate is up to 300MB/s
- Can connect up to 5 Serial ATA II drives (4 internal drives from ICH9, 1 drive from 88SE6111)
- BIOS:
- The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
- The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
|
