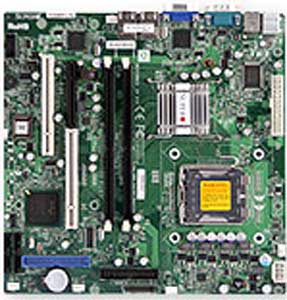

Supermicro PDSBM-LN2+ Motherboard
Single LGA775 ZIF Sockets, Supports an Intel ® Pentium ® Dual-Core Intel ® Xeon ® 3000, Core2 Duo, Pentium ® 4, Pentium ® D, Celeron ® D, Intel ® 946GZ chipset, 1 (x4) (x8 physical) PCI-Express or 1x 32-bit 33MHz PCI, 1x 32-bit 33MHz, DDR DIMM Up to 4 GB, Dual LAN, USB, IDE, SATA, Video, uATX Form Factor
|
|
- Internal I/O Interface:
- 1 Floppy controller; 1.44 MB, 2.88 MB
- 1x USB internal headers
- 1 EIDE connectors
- 1x Serial Header
- Four SATA hard drives supported
- Rear Panel I/O Ports:
- 2 RJ45 LAN ports
- 2x USB rear ports (USB 2.0 Compliant / 1.1 Compliant)
- 1x VGA Port
- 1 Fast UART 16550 serial port
- 1 ECP / EEP Parallel Port
- Stacked PS/2 keyboard and mouse ports
- Manageability:
- ACPI/APM Power Management
- Main Switch Override Mechanism
- Wake-On-Ring (WOR) header, Wake-On-LAN (WOL) header
- Power-on mode control for AC power loss recovery
- Suspend to RAM (STR)
- Internal/External modem remote ring-on
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT, HT, Memory, Chipset
- CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency ratio settings (via BIOS)
- Total of five 4-pin fan headers
- Status monitor for speed control
- 5x fans with tachometer status monitoring
- Status monitor on/off control
- Support 3-pin PWM fans (with speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan conn.
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- CPU Overheat LED, System Overheat LED
- +5V standby alert LED
- Thermal Control for 8x Fan Connectors
- I2C temperature sensing logic, PECI
- Thermal Monitor 2 (TM2) Support
- Chassis intrusion detection, Chassis intrusion header
- Suspend-state indicator LED
- Super Doctor III, Watch Dog, NMI
|
Supermicro PDSBM-LN2+ Specifications
- Model:
- Supermicro PDSBM-LN2+ Motherboard
- Processor Support:
- Single LGA775 ZIF Socket
- Supports a Dual-Core Intel ® Xeon ® 3000 Series processor
- Supports an Intel® Core2 Duo Series processor
- Supports an Intel ® Pentium ® 4 processor
- Supports an Intel ® processor
- Supports an Intel ® Celeron ® D processor
- Note: Supports 95 watt and lower processors only
- 1066 / 800 / 667 MHz system bus
- Chipset:
- Intel ® 946GZ
- ICH7R + Intel ® 82573
- Memory:
- Two 240-pin DIMM sockets
- Supports up to 4 GB of unbuffered, non-ECC DDR2 667/533MHz memory (Single / Dual Channel)
- DDR2 667/533MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs
- 256 MB, 512 MB, 1 GB, 2 GB, 1.8V only
- Expansion Slots:
- 1 (x4) (x8 physical) PCI-Express Slot OR
- 1x 32-bit 33MHz PCI Slot
- 1x 32-bit 33MHz PCI (5V) slots
- On-Board LAN:
- 2 x Intel ® 82573 Gigabit PCI-Express Ethernet
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- Storage:
- Intel ® ICH7R SATA2 (3 Gbps) controller built-in
- Four SATA hard drives supported
- RAID 0, 1, 5, 10 support (Windows Only)
- One EIDE channel supports up to two UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100
- Video:
- BIOS:
- 8Mb Flash EEPROM with PhoenixBIOS ®
- Winbond W39V080FAP
- Plug and Play (PnP)
- ACPI 1.0, PCI 2.2, DMI 2.3, APM 1.2
- BIOS Rescue Hot Keys
- USB Keyboard support
- SMBIOS 2.3
- Hardware BIOS virus protection
- Form Factor:
- uATX
- 9.6" x 9.6 ", (24.4cm x 24.4cm)
- Other Features :
- RoHS Compliant 6/6, Pb Free
- Passed to meet FCC standard requirement
|
