• Rear Panel I/O Ports:
  • VGA connectors
  • 2 RJ45 LAN ports
  • Up to 5 USB Ports 1.1 Compliant
  • 2 Fast UART 16550 serial ports
  • Stacked PS/2 keyboard and mouse ports


• On-Board Video:
  • ATI Rage XL 8MB PCI Graphics Controller
  • VGA Port


• IPMI:
  • 1U and 3U support for Intelligent Platform Management Interface v.2.0 (Optional: 1UIPMI-B)
  • 2U and 4U support for Intelligent Platform Management Interface v.2.0, Low Profile (Optional: AOC-LPIPMI-LANG)
  • RMM (Remote Management Module)
  • (Card not included)



• Manageability:
  • ACPI/API Power Management
  • Wake-On-LAN (WOL) header
  • Power-on mode control for AC power loss recovery
  • Internal/External modem remote ring-on


Tomcat i875PR Specifications

• Model:

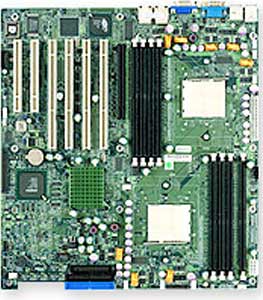

  • Supermicro H8DAE Dual Opteron 200Motherboard

• Processor Support:
  • Dual 940-pin ZIF Sockets
  • Supports up to two Dual-Core AMD Opteron 200 Series processor(s)
  • VRM x3

• Chipset:
  • AMD 8131 HyperTransport PCI-X Tunnel
  • AMD 8111 HyperTransport I/O Hub


• Memory:
  • Eight 184-pin DIMM sockets
  • Supports up to 16 GB DDR 400 MHz memory or
  • Supports up to 32GB DDR 333 SDRAM
  • Supports up to 32GB DDR 266 SDRAM
  • Single or Dual (recommended) channel memory support
  • For Single CPU: Memory must be populated in CPU I DIMMs only
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
  • DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
  • 256 MB, 512 MB, 1GB, 2GB, 4GB, 2.5 V only, Corrects single-bit errors, Detects double-bit errors (using ECC memory)


• Expansion Slots:
  • 2 64-bit 133/100MHz PCI-X (3.3V) slots
  • 2 64-bit 66MHz PCI-X (3.3V) slots
  • 2 32-bit 33MHz PCI (5V) slots
  • IPMI 2.0 expansion slot

• On-Board LAN:
  • Broadcom ® 5704 Dual Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output


• Management Software:
  • Optional IPMI (Intelligent Platform Management Interface) 2.0
  • Super Doctor III
  • Watch Dog


• BIOS:
  • 4Mb Flash EEPROM with AMI ® BIOS
  • Plug and Play (PnP)
  • ACPI 2.0, DMI 2.3, PCI 2.2
  • Fan Speed Control
  • SMBIOS 2.3

• Form Factor:
  • Extended ATX, 12" x 13.05" (30.5cm x 33.2cm)
