Tyan S5191G3NR Tyan Toledo i3000R (S5191G3NR) Motherboard LGA 775 Socket Supports Intel® Xeon® 3000 Chipset intel 3000 FSB 1066 Mhz Up to 8 GB DDR2 1 PCI-X 64/133 1 PCI-E x4 Triple Ethernet 2 Gigabit Ethernet Lan 1 10/100 Mb FE LAN XGI Volari 27 (4) hot-swap SATA2 HDDs ATX foot Print.

Name: Tyan S5191G3NR Tyan Toledo i3000R (S5191G3NR) Motherboard LGA 775 Socket Supports Intel® Xeon® 3000 Chipset intel 3000 FSB 1066 Mhz Up to 8 GB DDR2 1 PCI-X 64/133 1 PCI-E x4 Triple Ethernet 2 Gigabit Ethernet Lan 1 10/100 Mb FE LAN XGI Volari 27 (4) hot-swap SATA2 HDDs ATX foot Print.
Brand: Tyan
SKU: 107119
Price: 149.00 USD
Availability: OutOfStock

Part # 107119

Condition : New- Retail Box

| Warranty: 90 days

Brand : Tyan

| Log in to add review

Rate this product:

Updating...

Quantity: Out of Stock

Out of Stock: Don’t worry—click “Notify Me” and we’ll email you as soon as it’s back.

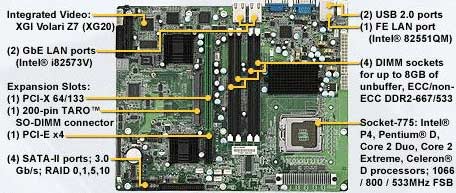

Tyan Toledo i3000R (S5191G3NR) Motherboard

Support Xeon / Core 2 Duo Socket 775

Tyan Toledo i3000R (S5191G3NR) Motherboard, LGA 775 Socket, Supports Intel ® Xeon ® 3000, Chipset intel 3000, FSB 1066 Mhz, Up to 8 Gb DDR2, 1 PCI-E 8x, Tyan TARO, 2 Gigabit Ethernet Lan, 1 10/100 Mb FE LAN, XGI Volari 27, (4) hot-swap SATA2 HDDs, ATX foot Print

Storage:
- Supports (4) hot-swap SATA2 HDDs (SAS ready backplace)

Front Panel Features:
- I/O: (2) USB 2.0 ports
- Switch: Power & Reset
- LED indicators HDD active, Power, and LAN (2) LEDs

Back I/O Ports:
- Stacked PS/2 Mouse & Keyboard ports
- (1) COM1 connector
- (1) 15-pin VGA port
- (6) USB 2.0 ports
- (2) GbE and (1) FE LAN ports

BIOS:
- Phoenix BIOS on 8Mbit LPC Flash ROM
- Serial Console Redirect; USB boot supported
- Supports ACPI 1.0b & APM 1.2
- PnP, DMI2.0, WfM2.0; Power Management
- S0/S1/S4/S5 states supported

Power:
- PS 12V, 1U, 350W with PFC
- 100V~240V AC input

Regulatory:
- FCC Class B (DoC)
- CE (Declaration of Conformity)

System Management:
- (6) Fan headers with tachometer monitoring and (4) with PWM; Watchdog timer
- Chassis intrusion header
- Temperature, voltage and fan monitoring
- Optional TYAN SMDC kit, IPMI 2.0 compliant
Cooling:
- (5) 40x40x28mm 14500rpm heavy-duty fans with fan speed monitor / control
- (1) passive CPU heatsink

Motherboard Specifications

Model:
- Tyan Toledo i3000R (S5191G3NR) Motherboard

Processor Support:
- Single LGA 775 socket
- Supports Intel ® Xeon ® 3000 series processors
- 4MB or 2MB L2 cache
- Supports Single and Dual Core processors

FSB:
- 1066 MHz
Chipset:
- Intel ® 3000 (Mukilteo-2) MCH + ICH7-R
- PCI-X bridge: Intel PXH-V
- Super I/O: SMSC SCH5027

Memory:
- (4) 240-pin DDR2 DIMM sockets
- Support up to 8GB unbuf.
- ECC/non-ECC DDR2-667/533 mem

Expansion Slots:
- (1) PCI-E x8 with riser (pre-installed)
- Or (1) PCI-X 64-bit / 133MHz slot with riser option
- One Tyan TARO SO-DIMM socket

On-Board LAN:
- (2) Gigabit Ethernet LAN ports (Intel ® 82573V)
- (1) 10/100Mb FE LAN port (Intel ® 82551QM)

Environment Temperature:
- Operating temperature 5 °C ~ 35 °C
- Non-operating temperature -40 °C ~ 70 °C

Enclosure:
- Industry 19" rack-mountable 1U chassis
- (1) slim CD-ROM bay; (4) 3.5" HDD bays and (1) slim line FDD bay
- Dimensions (inch): 17.2"(W) x 22.4"(D) x 1.72"(H)
- Dimensions (mm): 436 (W) x 568 (D) x 43.6 (H)
