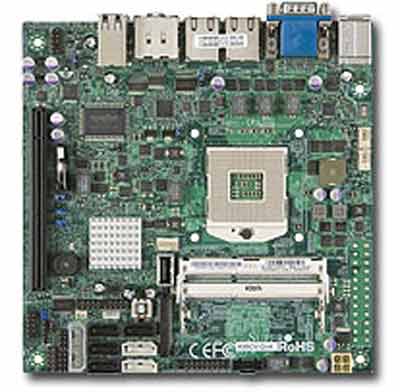

Supermicro X9SCV-QV4 Motherboard

• Storage:

  • 4x SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
  • 2x SATA3 (6Gbps) w/ RAID 0, 1

• Rear Panel I/O Ports:
  • Super I/O: Nuvoton NCT6776F
  • 6 SATA ports
  • 6 SATA hard drives supported
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 11x USB 2.0 ports total (6x rear + 4x via headers + 1 Type-A)
  • 1x VGA port
  • 1x Fast UART 16550 serial port; 1x header
  • 2x HDMI ports
  • 1x LVDS connector onboard


• Hardware Monitoring:
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • FAN: Total of three 4-pin fan headers supporting up to 3 fans
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • CPU / System Overheat LED
  • +5V Standby alert LED


Motherboard Specifications

• Model:
  • Supermicro X9SCV-QV4 Motherboard


• Processor Support:

  • Socket G2 (rPGA 988B) up to 45W
  • Intel ® 2nd Generation Core i7/i5/i3, Celeron processor B800 series supported

• Chipset:
  • Intel ® QM67 chipset

• Memory:

  • 2x 204-pin DDR3 SODIMM sockets
  • Supports up to 16 GB DDR3 non-ECC SO-DIMMs
  • 1333/1066MHz unbuffered DDR3 SO-DIMM, 204-pin gold-plated DIMMs
  • 8GB, 4GB, 2GB, 1GB
  • 1.5 V

• Expansion Slots:
  • 1 PCI-E x16 Gen 2 slot

• On-Board Video:
  • Intel integrated graphics

• On-Board Audio:
  • Realtek ALC 889 HD audio

• On-Board LAN:

  • Intel ® 82579LM and 82574L, 2x Gigabit LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

• Form Factor/Dimensions:
  • Mini-ITX
  • 6.75" x 6.75", (17.15cm x 17.15cm)
• Manageability:

• SuperDoctor ® III
• Watch Dog
• Power Configurations: ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Keyboard Wakeup from Soft-Off
• Power-on mode for AC power recovery
• BIOS:
• 64Mb SPI Flash EEPROM with AMI BIOS
• Features: ACPI 1.0 / 2.0
• Plug and Play (PnP)
• SMBIOS 2.3
• UEFI
• USB Keyboard support
