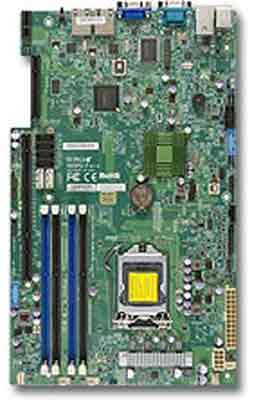

Supermicro X9SPU-F Motherboard

• Storage:

  • 4x SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
  • 2x SATA3 (6Gbps) w/ RAID 0, 1
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450RA0BX

• Rear Panel I/O Ports:

  • 2 SATA 3.0 ports (6Gbps)
  • 4 SATA 2.0 ports (3Gbps)
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
  • 4 USB 3.0 ports total (via headers)
  • 4 USB 2.0 ports total (2 rear, 2 via header)
  • 1 VGA port
  • 2x serial ports (1 rear, 1 header)
  • 1x DOM (Disk on Module) power connector
  • 1x TPM 1.2 20-pin Header

• Hardware Monitoring:
  • Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • FAN: Total of five 4-pin fan headers supporting up to 5 fans w/ tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I²C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
  • Chassis intrusion detection
  • Chassis intrusion header
  • Chipkill support
  • RoHS, Halogen Free


Motherboard Specifications

• Model:
  • Supermicro X9SPU-F Motherboard


• Processor Support:
  • Intel ® Xeon ® processor E3-1200 & v2 series, Intel ® 2nd Gen and 3rd Gen Core i3, Intel ® Pentium ® and Celeron processors *** *
  • Socket H2 (LGA 1155)

• Chipset:
  • Intel C216 Express PCH chipset

• Memory:

  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 ECC and non-ECC UDIMM
  • 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 8GB, 4GB, 2GB, 1GB
  • 1.5 V, 1.35 V
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Expansion Slots:

  • 1x PCI-E 3.0 x16 slot***
  • 2x PCI-E 2.0 x4 (in x8) slots

• On-Board Video:
  • Matrox G200eW 16MB DDR2 graphics controllers

• On-Board LAN:

  • Intel ® 82574L Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

• Form Factor/Dimensions:
  • Proprietary UIO
  • 8" x 13", (20.3cm x 33.0cm)
• Manageability:

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor ® III
• Watch Dog
• NMI
• Power Configurations: ACPI / APM Power Management
• Keyboard Wakeup from Soft-Off
• CPU Fan auto-off in sleep mode
• Power-on mode for AC power recovery
• BIOS:
  • 64Mb SPI Flash EEPROM with AMI BIOS
  • Features: Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI
  • RTC (Real Time Clock) Wakeup

• Special Features:
  • Important Chassis Notes: To support the new generation Intel ® Xeon ® processor-based motherboards,Revision K  chassis is recommended for most models. Please talk to your sales representative for details.
