EVGA Z77 FTW

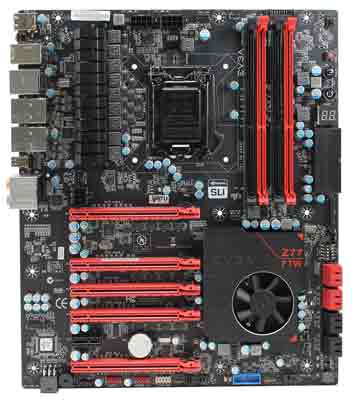

EVGA Z77 FTW Motherboard

• Storage:
  • 6 x Serial ATA 300MB/sec (4x Internal + 2x E-SATA) with support for RAID 0, RAID1, RAID 0+1, RAID5, RAID10 and JBOD
  • 4 x Serial ATA 600MB/sec (4 Internal) with support for RAID 0 and RAID1

• Internal I/O Interface:

• Audio connector (Line-in, Line-out, MIC
• 8 Channel High Definition (ALC889)
• 10 USB 2.0 Ports
• 6 USB 3.0 Ports

• 2 x 10/100/1000 (Marvell 88SE6121)
• 1 Firewire 1394 Ports


• BIOS:
  • AMI/UEFI
  • EVGA E-LEET Tuning Utility


• Special Features:

  • O.S: Windows 7 32/64bit
  • Windows Vista 32/64bit
  • Windows XP 32/64bit

• Hardware Monitoring:
  • 7 Fan Headers


Motherboard Specifications

• Model:
  • EVGA Z77 FTW Motherboard


• Processor Support:
  • Intel Core i3, Core i5 and Core i7 Socket 1155

  • LGA1155


• Chipset:
  • Based on Intel Z77 chipset

• Memory:

  • 4 x 240-pin DIMM sockets
  • Maximum of 32GB of DDR3 (2133MHz+ in dual channel configuration)

• Expansion Slots:
  • 5 x PCIe x16
  • 1 x PCIe x1

• On-Board Audio:
  • 8 Channel HD Audio
  • Realtek ALC889


• On-Board LAN:
  • 2 Gigabit Ethernet Ports (10/100/1000)

• Form Factor/Dimensions:

  • EATX Form Factor
  • Length: 12in - 304.8mm
  • Width: 10.375in - 263.5mm
• Accessories:

• EVGA Driver Installation Disc with EVGA E-LEET
• Rear Case I/O Panel
• 2 SATA 3G DATA Cables
• 2 SATA 6G DATA Cables
• 2 SATA Power Adapters
• 2 Port USB/1394 Firewire Port Bracket
• 2 Port USB 3.0 Bracket
• 2-way SLI Bridge
• Visual Installation Guide
• Manual
